Item NO.:
AT-C40Order(MOQ):
1Goods Stock:
2Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
15 Sets/ Month

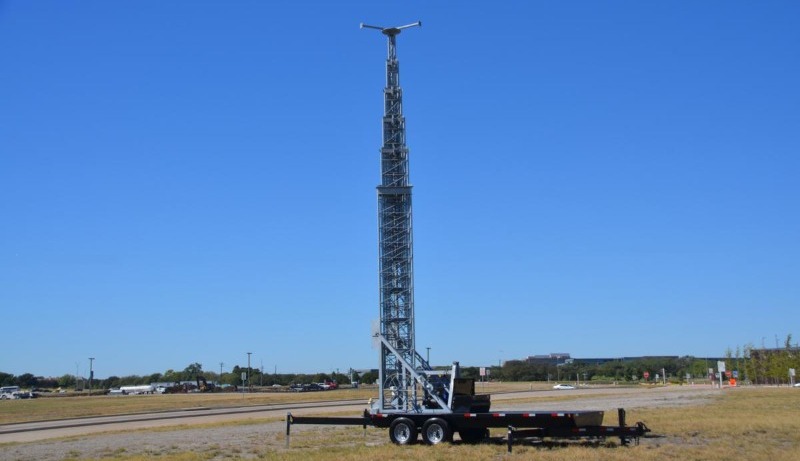

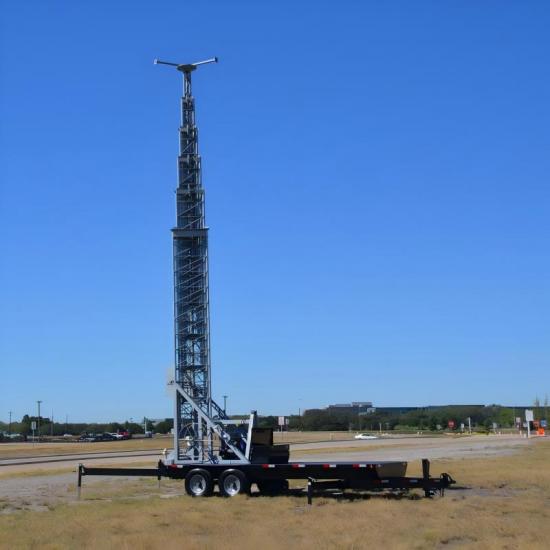

40-Meter Cellular on Wheels (COW) Unit:
1. Mobile Deployment: A 40-meter COW unit is designed to be mobile and easily transportable to different locations, allowing for rapid deployment and setup.

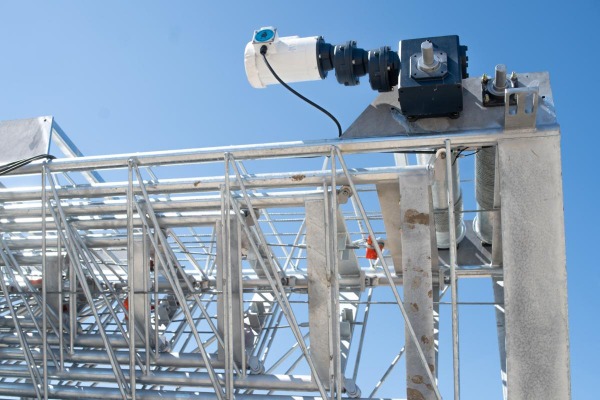

2. Telescopic Mast: The COW unit is equipped with a telescopic mast that can extend up to 40 meters in height to elevate antennas for improved wireless coverage.
3. Antenna System: The COW unit includes an antenna system mounted on the mast to transmit and receive cellular signals, providing coverage over a wide area.
4. Equipment Shelter: Typically, a COW unit has an equipment shelter or enclosure to house the necessary radio equipment, power supply, and networking components.
5. Power Supply: COW units are often equipped with generators, batteries, or connections for external power sources to ensure continuous operation in remote or temporary locations.
6. Network Connectivity: The COW unit is designed to connect to the existing cellular network infrastructure to provide seamless integration and extend coverage as needed.
7. Remote Monitoring: Some COW units feature remote monitoring capabilities to allow operators to monitor and manage the unit's performance and status remotely.
Product Description
Product Name：COW ( CELL ON WHEELS) TOWER
Design Software：MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.
Height: 40 meters
Wind Speed: 0--300KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700:Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization: ASTM A123/150 1461
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding ( SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 20 years
Supply Ability: 15 SETS Per Month
11
1111
1. Events: Deployed during large events such as concerts, festivals, sports events, and conferences to handle increased mobile network traffic.
2. Emergency Response: Used in emergency situations such as natural disasters, accidents, or power outages to restore communication services quickly.
3. Network Expansion: Deployed temporarily to enhance coverage in areas experiencing high demand, network congestion, or during network upgrades.
4. Testing and Optimization: Utilized for network testing, optimization, and capacity planning to improve network performance and reliability.
123

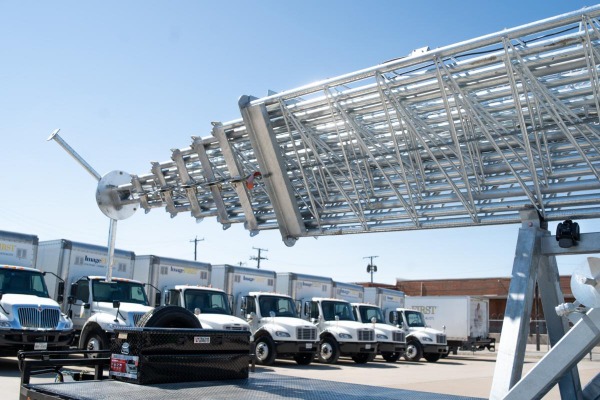

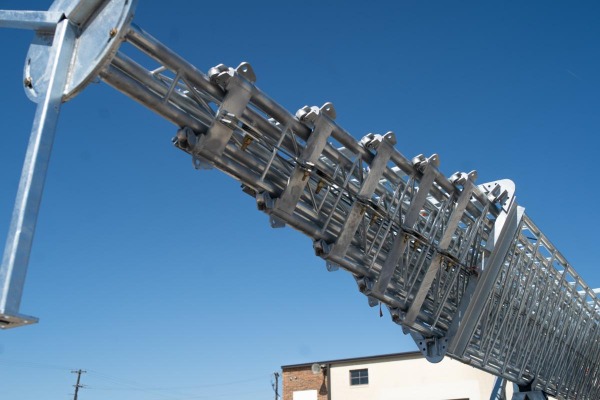

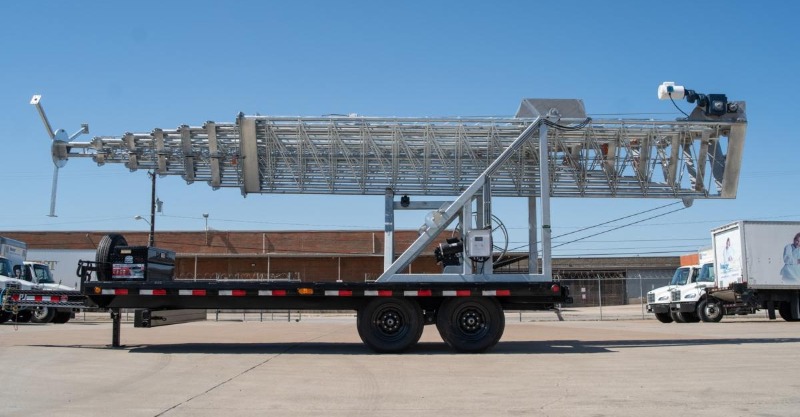

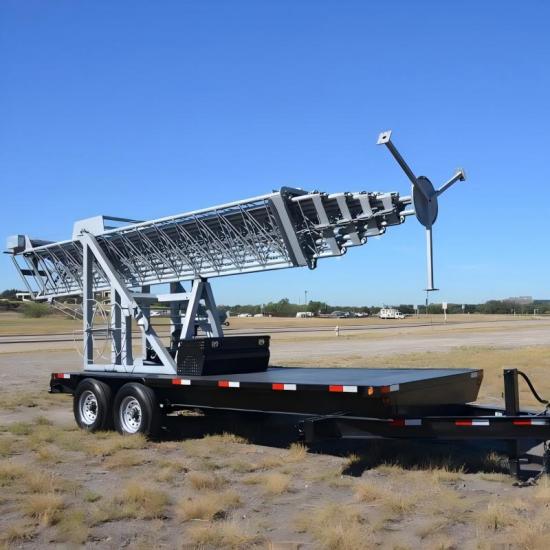

Product Details:
1
1
2
2222
121
Shipment Reference:

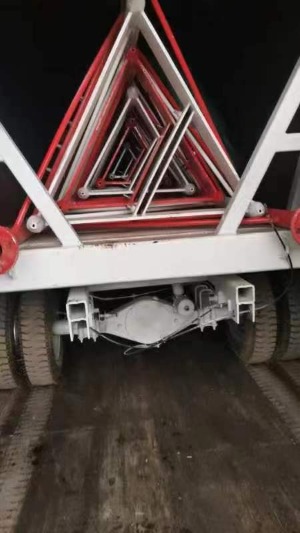

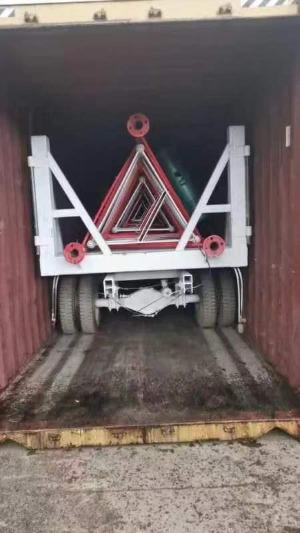

Generally, the cell on wheels are shipped in a container like as showned.
11

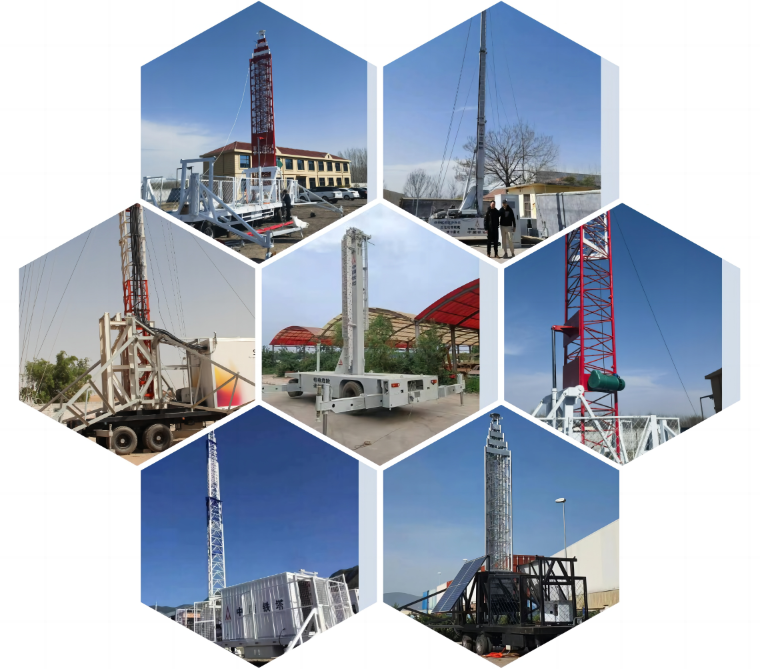

COW Series Overview:

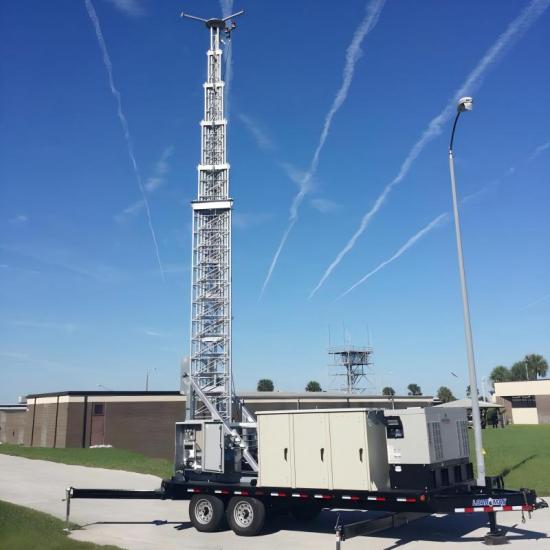

COWs are mobile trailer-mounted cell towers used to provide temporary cellular network coverage. The trailers contain antennas, transceivers, and all the electronics needed for cellular service mounted on a truck or trailer.
Cell on Wheels (COW) is a portable base station used to provide temporary cellular network coverage for high-profile events and emergency situations where existing base stations become damaged, or during natural disasters such as bush fires and floods.
The base station equipment installed on the flatbed trailer can be used in emergency situations, for example, when the transmission tower of a certain base station collapses, or when an accident occurs to the base station equipment, the vehicle-mounted base station can be quickly and temporarily replaced to maintain communication in the community.
Cell on Wheels are mobile, they don’t require a foundation and need only grounding and commercial power. Imagine all the possibilities for their use.
The latest COW design, with its own battery, is smaller and lighter than ordinary cell on wheels, making it more suitable for flexible and mobile deployment. The maximum height can be raised to 10 meters, and each container can hold 4 pieces of equipment.
Multi-terrain 2x4 & 4x4 HD Commercial Trucks; 19,500-33,000 lb (8,843 kg- 14,966 kg) Capacity GVWR; Air or Hydraulic Brakes
A "hydraulic telecom cell on wheels" typically refers to a mobile unit that combines hydraulic components with telecommunication equipment, often used in emergency situations, temporary setups, or remote locations where rapid deployment of communication infrastructure is needed.
A "Cellular on Wheels" (COW) or "WiFi on Wheels" tower is a mobile cell site that can be quickly deployed to provide temporary wireless network coverage in areas where it is needed, such as during events, emergencies, or where additional capacity is required. These towers are often mounted on trailers or trucks for easy transportation and setup.
