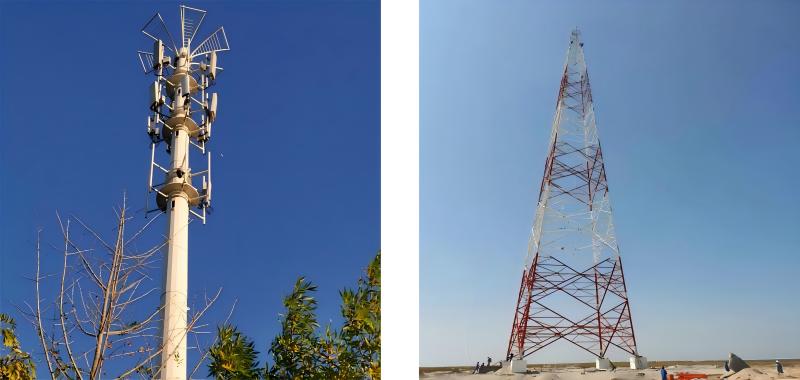

Monopole Towers and Lattice Towers: Differences and Applications

•
• Functions:
  Both monopole and lattice towers are designed to elevate antennas or equipment for telecommunications, broadcasting, or power transmission. Their primary function is to provide structural support at heights necessary for optimal signal distribution or power line routing.

• ---



  ---



• Differences:
• 1. Structure:

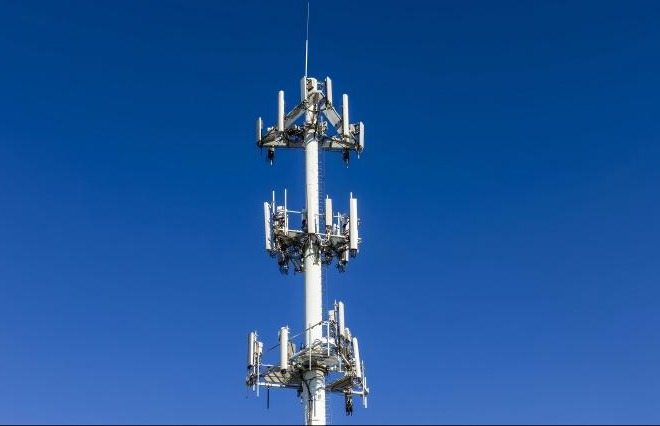

• Monopole Tower: A single, cylindrical pole (often tubular) made of steel or concrete. Typically used for shorter heights (up to 50–60 meters).

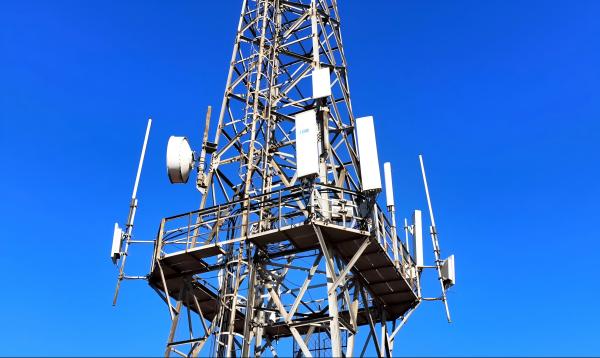

• Lattice Tower: A framework of interconnected steel bars forming triangular or square sections. Can exceed 300 meters in height.
• 2. Space and Aesthetics:
• Monopole: Minimal footprint, ideal for urban areas. Easily camouflaged (e.g., disguised as trees or flagpoles).
• Lattice: Larger footprint, requiring more land. Industrial appearance, often used in rural or industrial zones.
• 3. Load and Height Capacity:
• Monopole: Supports moderate loads (fewer antennas). Limited by structural integrity as height increases.
• Lattice: Handles heavier loads (multiple antennas, high-voltage power lines) and greater heights due to robust triangular bracing.
• 4. Installation and Cost:
• Monopole: Quicker installation (prefabricated sections or single piece). Higher material costs but lower labor expenses.
• Lattice: Longer assembly time (on-site construction). Lower material costs but higher labor and maintenance due to complex structure.

• ---



• ---

• 5. Wind Resistance:
• Monopole: Acts as a solid structure, requiring stronger foundations to withstand wind forces.
• Lattice: Open design allows wind to pass through, reducing wind load and enhancing stability in high-wind areas.
• 6. Maintenance and Durability:
• Monopole: Fewer components, less maintenance. Vulnerable to corrosion at the base.
• Lattice: More joints and bolts require frequent inspections. Prone to corrosion but easier to repair individual sections.
• 7. Applications:
• Monopole: Urban cellular networks, stealth installations, areas with zoning restrictions.
• Lattice: Rural power transmission, TV/radio broadcasting, wind turbines, and tall infrastructure projects.
• 8. Zoning and Safety:
• Monopole: Easier urban approval due to smaller size and aesthetics. Safety harnesses required for climbing.
• Lattice: May face opposition in residential areas. Includes platforms for safer maintenance access.

• ---



• ---

• Summary:
  Monopole towers prioritize space efficiency and aesthetics, suitable for moderate urban needs. Lattice towers offer superior height, load capacity, and durability for large-scale applications in open areas. The choice depends on technical requirements, environmental constraints, and cost considerations.
