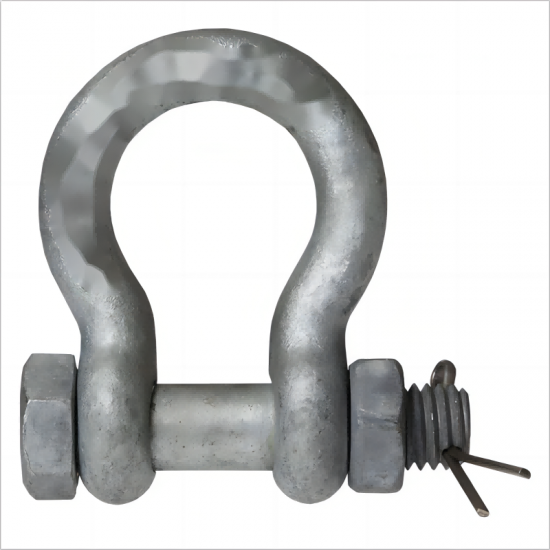

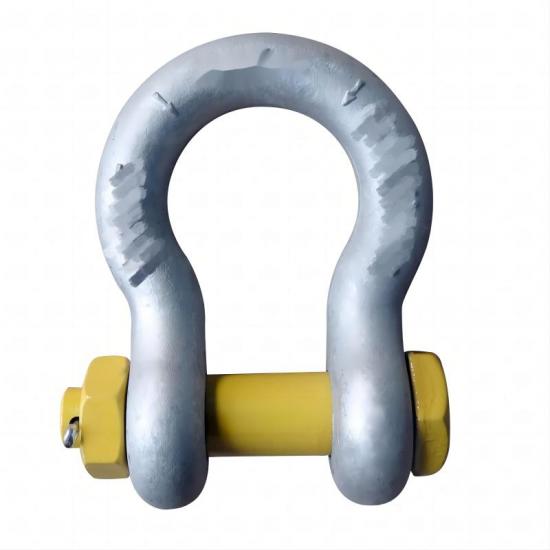

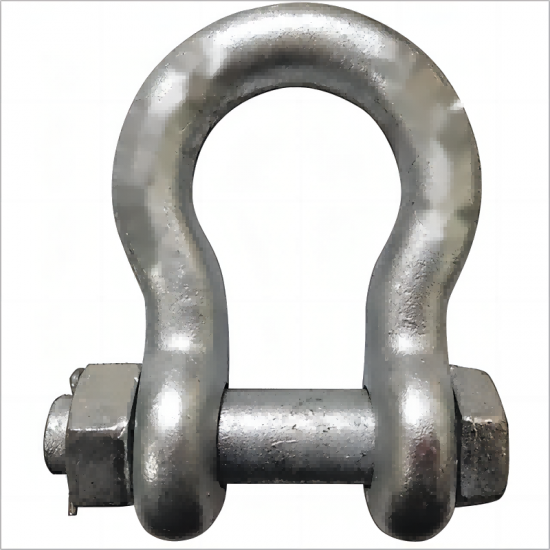

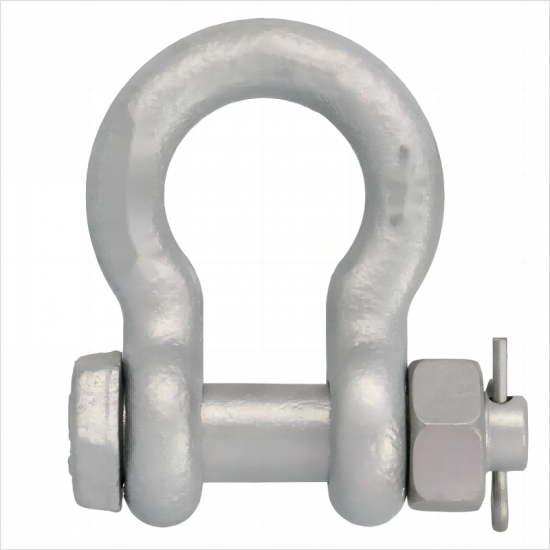

shackle bolt kits
shackle bolt kits
shackle bolt kits
shackle bolt kits

Heavy Duty Crosby Bow Anchor Shackle Bolt

Bow shackles are widely used in various industries such as electric power, metallurgy, petroleum, machinery, railways, chemical industry, ports, mining, and construction.
  • Item NO.:

    AT-SB02
  • Order(MOQ):

    2,000 PCS
  • Goods Stock:

    1
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    Silver / as per customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    30,000 pcs per month

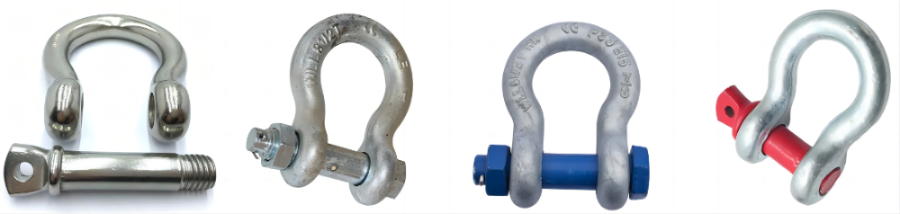

The bow shackle is a connecting piece used for hoisting and traction. It is called a bow shackle because its shape is similar to that of a bow and arrow. Bow shackles are also often called horseshoe shackles or B-type shackles. They are widely used in various industries such as electric power, metallurgy, petroleum, machinery, railways, chemicals, ports, mining, and construction.

shackle bolt



Product Description:

Product Name: Bow Shackle Bolt Kits

Measurement system:Imperial (Inch)

Material: Alloy Steel

Shackles type:Bow Shackles

Place of Origin:Shandong, China

Shackles pin type:with safety bolt pin

Type:Us Type

Surface Treatment:electro galvanizing or hot dip galvanizing

Size:1/3T-150T

Material:Body: 45#; Pin:40Cr

Technology:Drop Forged

Surface:Electro Galvanizing or Hot Dip Galvanizing

Usage:Lifting and adjusting chains to fasten cargoes and machineries

Certificates:CE ,ISO9001,BV,SGS

Loading Port: Qingdao,China

Supply Ability: 30,000 pcs per Month

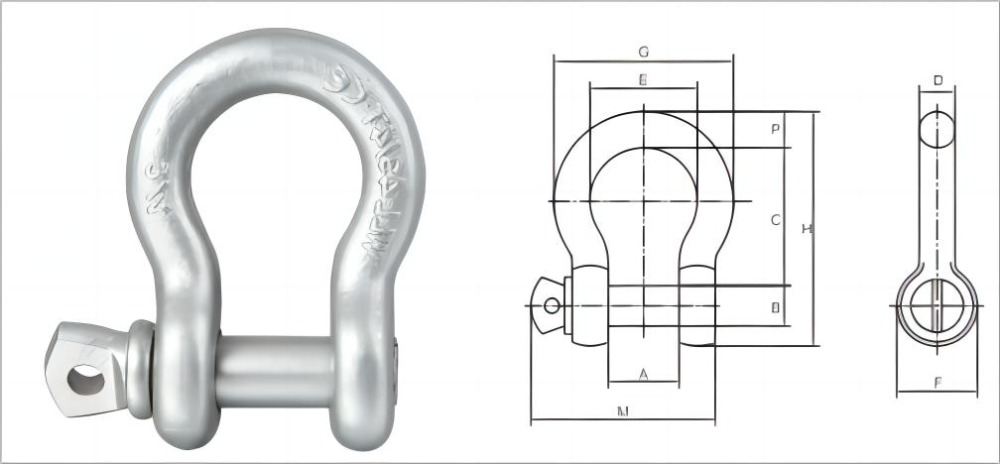

bow shackle parameter

ITEM NO. WEIGHT/(Kg) WLL/(T) B.L(T) A±1.5 C±1.5 D±1 L±3 N L1±3 B
AT-SB02-1 0.22 1.2 6 13.5 21.3 8 53 9.5 50.5 8.4
AT-SB02-2 0.33 1.6 8 16.8 25.9 9.7 63.2 11 62 10.8
AT-SB02-3 0.49 2.5 12.5 19 29.5 11.2 74 13 70 12.8
AT-SB02-4 1.01 3.3 16.5 20.6 33.3 12.7 83.3 16 79.5 14.8
AT-SB02-5 1.6 5 25 27 42.9 17.5 106.4 19 101.5 18
AT-SB02-6 2.42 7 35 32 20.8 20.6 126.2 22 117.5 19.4
AT-SB02-7 3.95 9.5 47.5 36.6 57.9 24.6 148 25 136 21.5
AT-SB02-8 5.66 12.5 62.5 43 68.3 27 166.6 28 153.5 23.8
AT-SB02-9 8.27 15 75 46 74 31.75 190 32 171.5 25.6
AT-SB02-10 11.71 18 90 51.6 82.5 35 210 35 192 31
AT-SB02-11 15.83 21 105 57 92 36 232.7 38 202 33.4
AT-SB02-12 20.8 30 150 60.5 98 41 254 42 222 34
AT-SB02-13 33.91 40 200 73.2 126 57.2 313.7 51 278 38
AT-SB02-14 52.25 55 275 82.5 146 61 347.5 57 307 45



Packaging Details:

Our general package is plastic bag + drum. Also accept what our client request.
