Item NO.:
AT-SP50Goods Stock:
200Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：

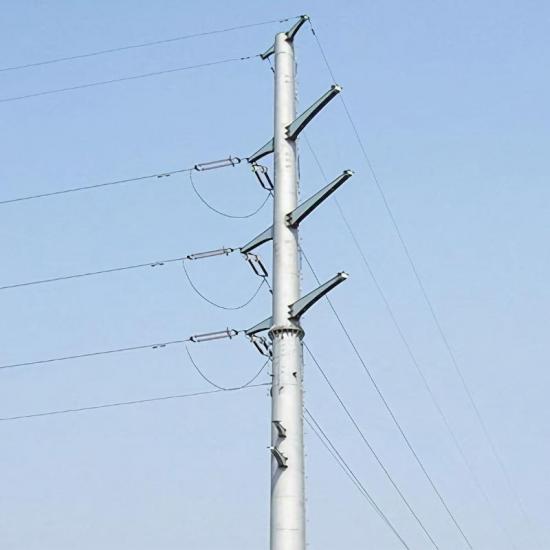

3,000 MT/ MonthA 50-foot utility steel pole is a robust structure designed to support overhead utilities in various settings.
Height: A 50-foot utility steel pole stands approximately 50 feet (15.2 meters) tall from the ground to its top.
Material: Constructed from steel, known for its strength, durability, and resistance to environmental factors.
Function: Supports overhead utilities such as power lines, telecommunication cables, street lights, and other equipment.

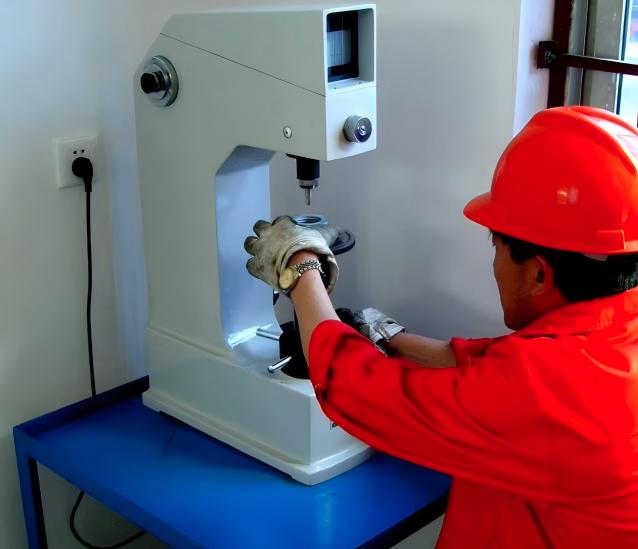

When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.
1.Raw materialtest :When purchasing the raw material(steel plate ),on
sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

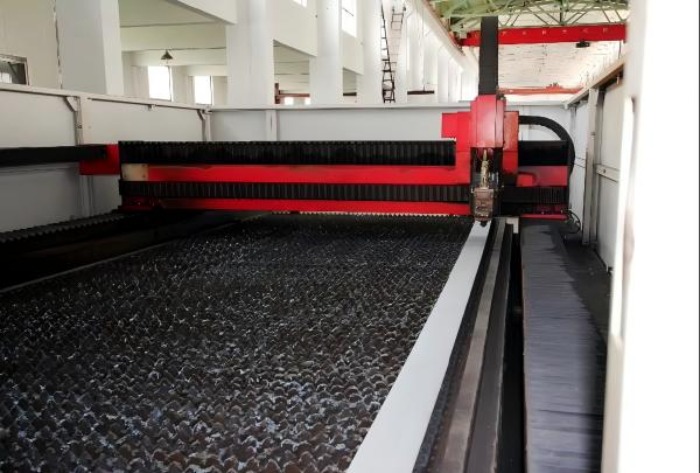

Material standard :ASTM GR652.Cuting :Cuting the raw material that have meet all the standard required into different length and width .
Cutting the raw material that have meet all the standard required into different length and width.
3.Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .
4.Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.
5.Dimension verify :Afer welding ,check the diameter ,length according to the drawing .
6.Flange:Weld the flange into the main pole
Welding standard:ASTM A 252-1998 or ASTM A 714-1999
7.Drill:Drill the hole at the right location as requested in the drawing.
8.Calibration:check the straightness and diameter to make sure it meet all the requirement .
9.Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized
10.Galvanization :All poles internally and externally are to be hot-dip
galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971
11.Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.
12.Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .

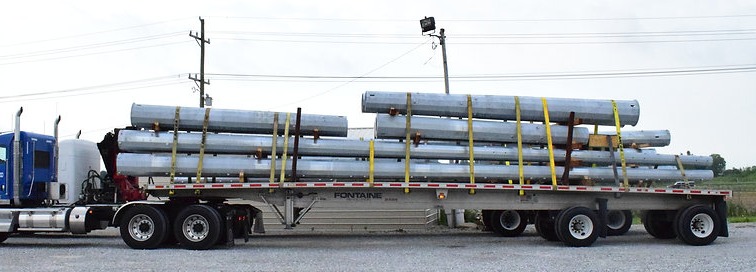

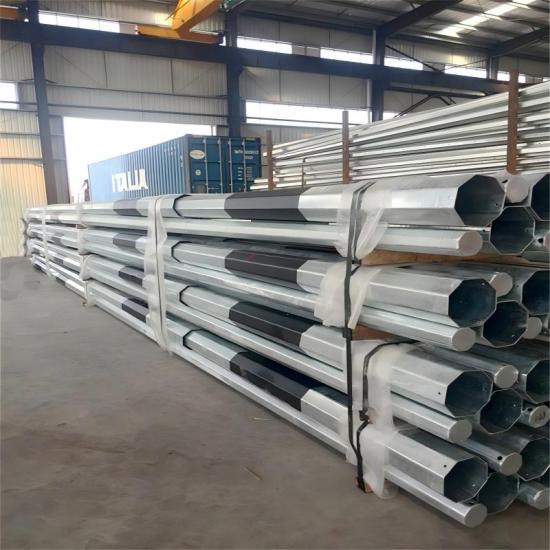

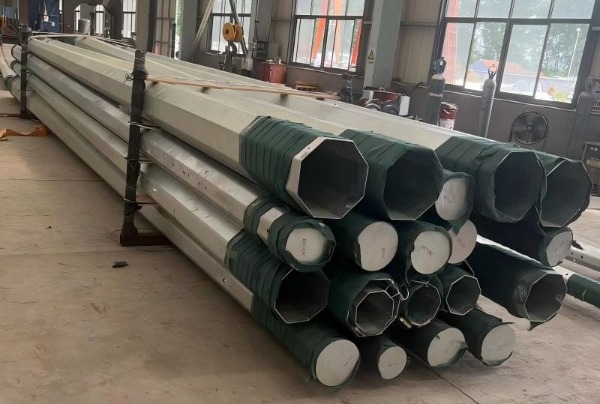

13.Packages: Our poles as normal cover by sea /road -worthy wooden
packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data
Specification:
|
Types Length |
45ft | 50ft | 55ft | 60ft | 65ft | 70ft |
| 13.75m | 15.25m | 16.80m | 18.30m | 19.85m | 21.35m | |
| B ( 0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| E ( 2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| C ( 15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| D ( 30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
| Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
| HS ( 0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| HT ( 2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3T ( 15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3D ( 30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Packaging Details:
Qingdao Altai Tower Co., Ltd
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.

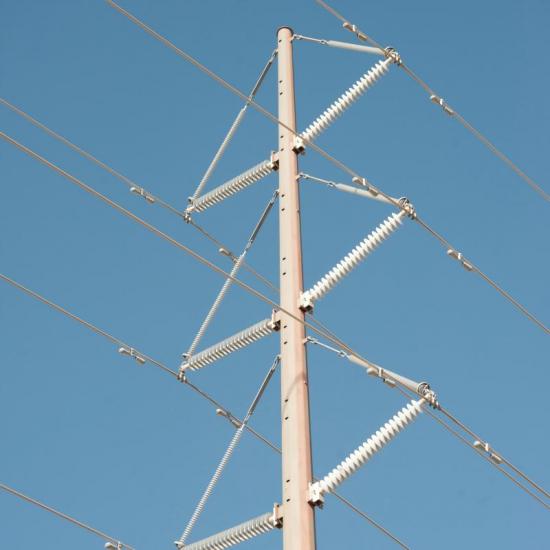

Low voltage transmission poles are structures designed to support power lines carrying electricity at relatively low voltages, typically ranging from 110 volts to 33,000 volts. These poles are an integral part of electrical distribution systems, transporting power from distribution substations to end-users such as residential, commercial, and industrial consumers.

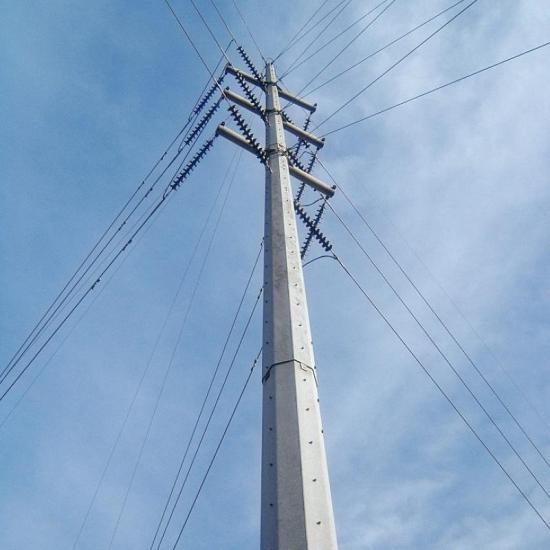

Utility electric poles play a critical role in supporting essential utilities and services, providing a framework for the distribution of electricity, communication signals, and lighting in various urban and rural settings.
