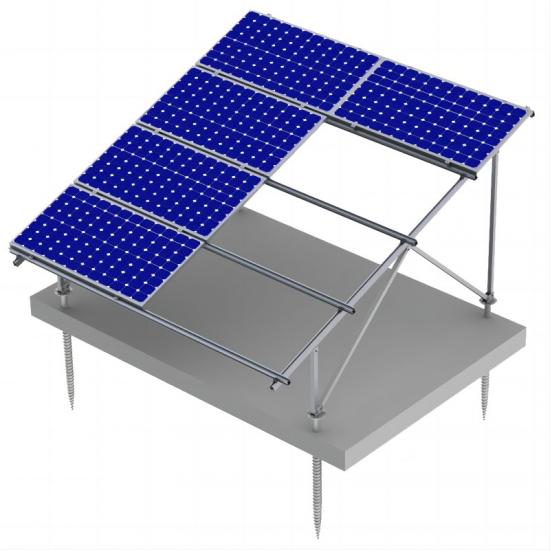

Ground Mounted Aluminum Alloy Solar Panel Mounting Structure

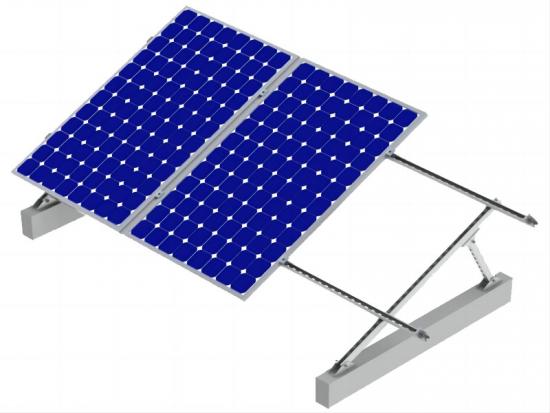

Home Solar Panel Mounting Structure

Ground Mounted Aluminum Alloy Solar Panel Mounting Structure

Ground Mounted Solar Panel
Ground Mounted Solar Panel
Ground Mounted Solar Panel

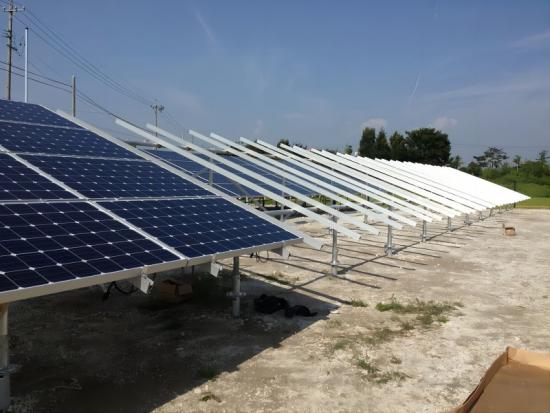

Ground Mounted Aluminum Alloy Solar Panel Mounting Structure

Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. Common materials include aluminum alloy, carbon steel and stainless steel.
  • Item NO.:

    AT-PV/ GM
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

The brackets of solar arrays are usually fixed by hot-dip galvanized steel products or stainless steel anchor bolts protruding from the reinforced concrete foundation. When a concrete foundation is used on the roof of a house, uncover part of the waterproof layer of the house and peel off the concrete surface. Weld the steel bars of the concrete base for the array to the steel bars of the patio. Afterwards, a secondary waterproofing treatment is carried out with a waterproof filler.

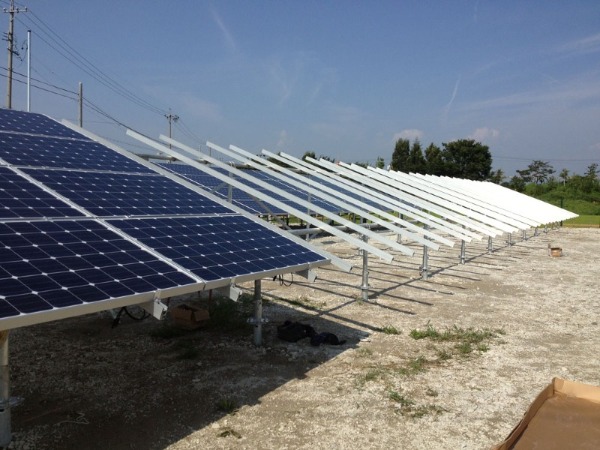

solar panel ground mounting system

Product Description:

Product Name

Ground Mounted Solar Panel Mounting Structure

Material

Q235 SS304 SS316

Equipment

80T/200T/250T/300T/500T/800T Stamping machine CNC & EDM & Bending. etc.

OEM/ODM

Available

Panel Type:

Framed & Frameless

Wind load

<=60m/s

Tile Angle

0-60 degree

Surface treatment:

Hod dipped galvanization >=65um for Q235 steel and Average Anodizing coating thickness >=8-10um

Panel Orientation

Landscape/portrait

Packing

 15 years quality warranty, 25 years life span warranty





Product Overview:



Packaging Reference:

Use custom pallets and film coverings to protect goods from damage in transit. The ground screws are packaged separately.

package solar   solar panel mounting kit package



ground pv solar system mounting bracket package




Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
