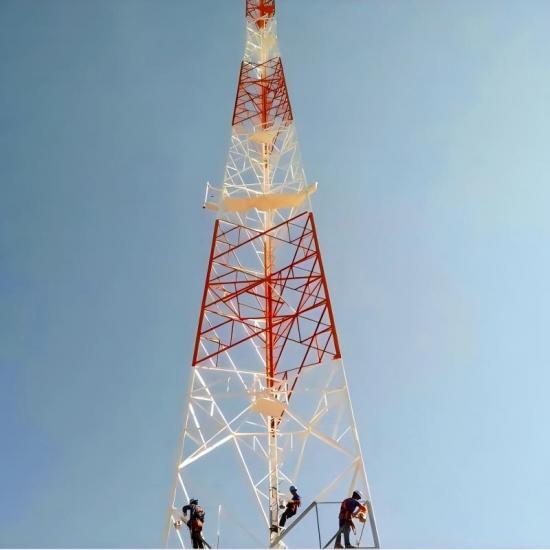

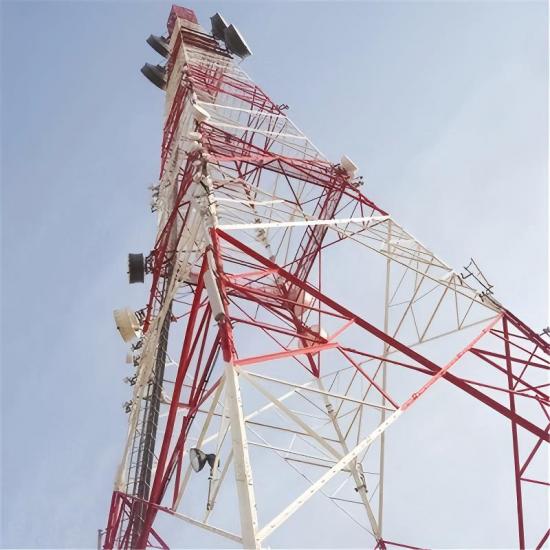

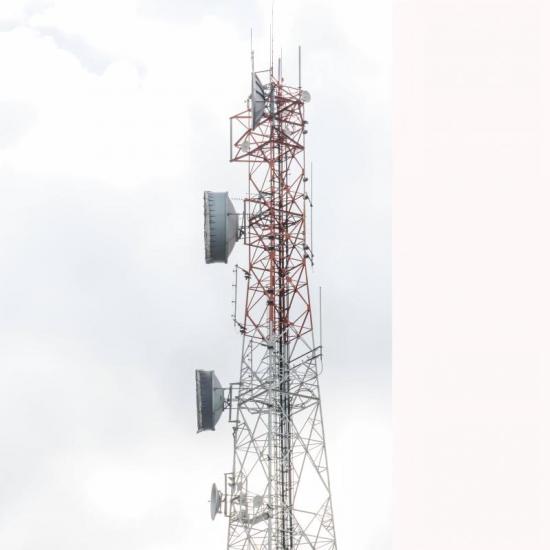

100M Hot-dip Galvanized 4 Leg Angle Steel Antenna and Microwave Telecom Tower
Item NO.:
AT-A100Order(MOQ):
10 MTGoods Stock:
1Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
3,000 MT/ MonthKey Features
1. Structure: Constructed using galvanized angle steel, these towers feature a lattice design with four legs, ensuring high stability and load-bearing capacity.
2. Height: Designed to reach heights of up to 100 meters, making them suitable for wide-area coverage in telecommunications and broadcasting.
3. Material: Typically made of high-quality steel (e.g., Q235 or Q345) with hot-dip galvanization for corrosion resistance, ensuring a lifespan of over 30 years.
4. Customization: Can be tailored to meet specific project requirements, including wind pressure resistance (25-55 m/s) and seismic intensity (up to 8°).
Description:
Product Name：100M 4-Legged Angular Steel Tower
Type: Telecommunication Tower
Height: 100 M
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 3,000MT Per Month
Why Choose Us?
1.We have a strict quality management system and are certified to ensure that our customers will not have any problems when receiving and using the goods.
2.Imported advanced production equipment can ensure sufficient productivity and good operational stability, ensuring on-time delivery of quality and quantity for our customers.
3.Our long-term accumulation in this industry has given us a good reputation and credibility, and our high-quality products can be seen in major regions of the world.
Full Experience in the Industry

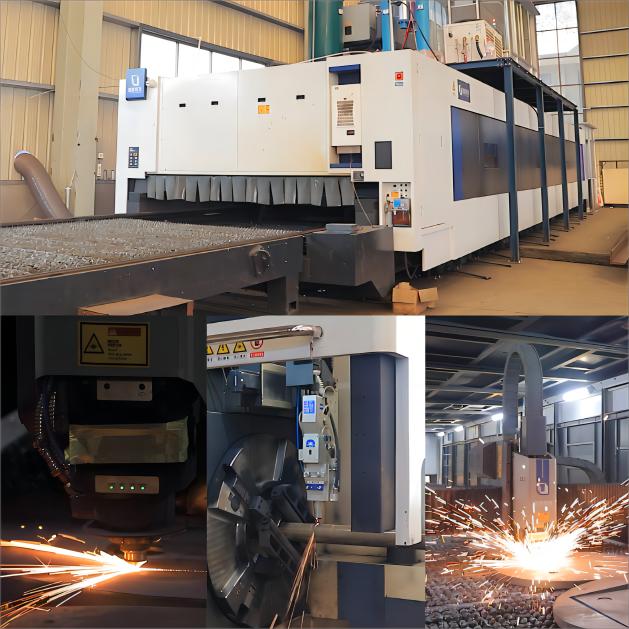

Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Mature Production Line and Sophisticated Employees
Hot-dip Galvanization:
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities and strictly according to ASTM A123 standard.
Professional Technical Engineering Team

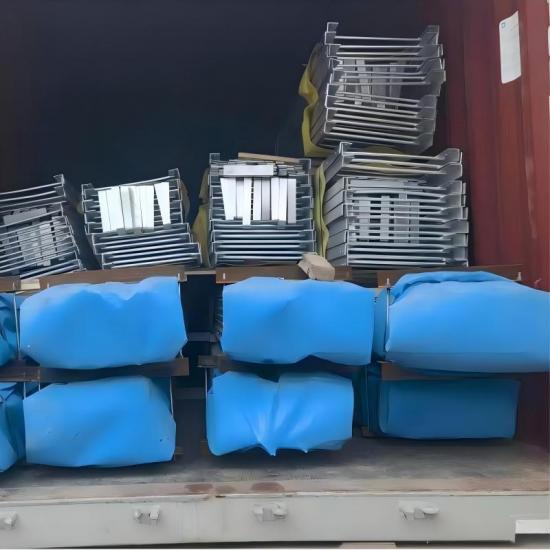

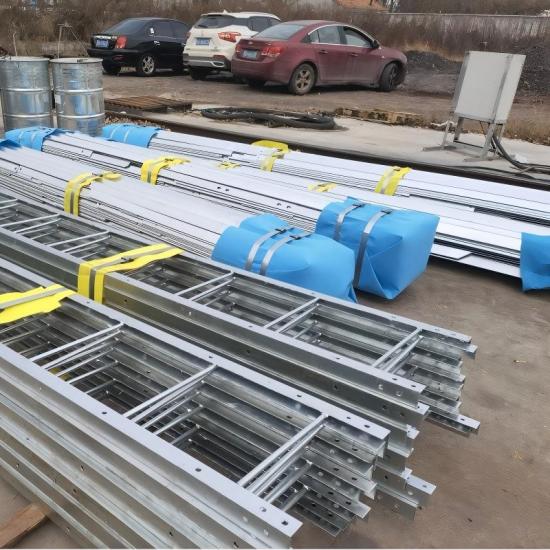

Packaging Details:

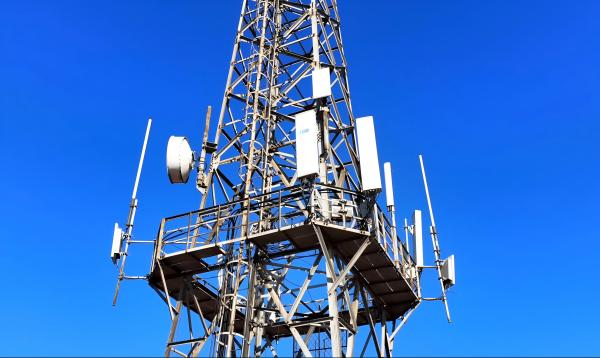

Angle steel tower refers to a self-standing tall steel structure made of angle steel. It is the earliest tower type used by operators. Angle steel towers are divided into two types: floor towers and roof towers. They generally consist of a foundation, tower feet, tower legs, tower body, platform, and lightning rod. , antenna bracket and ladder.
Angular steel towers offer economical, low-maintenance lattice tower structures that safely elevate critical communications equipment high above ground level.
Angle steel towers are large in size and occupy a large area. They are generally placed in suburbs or villages where land rent is not high. The amount of manufacturing and welding is small and easy to process.
Angle steel towers are suitable for counties, towns, fields, hills, mountainous areas and other areas with low landscape requirements and easy land acquisition. They are also suitable for areas with complex environments and difficult transportation.
The angle steel tower is assembled from angle steel materials and connected by bolts. It is very convenient to process, transport and install. It has high overall stiffness, strong load-bearing capacity and mature technology application. Angle steel towers are limited by the specifications of angle steel materials. The material utilization rate is low and the amount of steel is large. However, the unit price of angle steel materials is low. Overall, the cost performance has certain advantages.
Angle steel telecom towers remain a cornerstone of global communication infrastructure due to their robustness, modularity, and cost efficiency. Continuous innovation in materials and design ensures their relevance in evolving telecommunication landscapes.
A 3-legged angle steel telecom tower is a specialized structure widely used in telecommunications for supporting antennas, microwave transmission, and other communication equipment. These towers are known for their stability, durability, and customization options.
