Item NO.:
AT-A90Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
6,000 MT/ Month
Description:

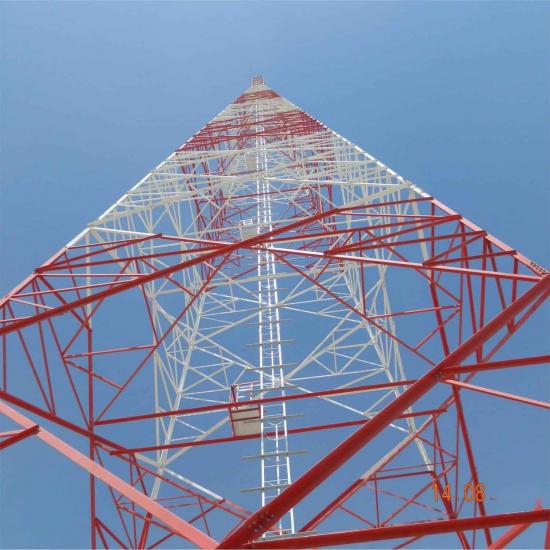

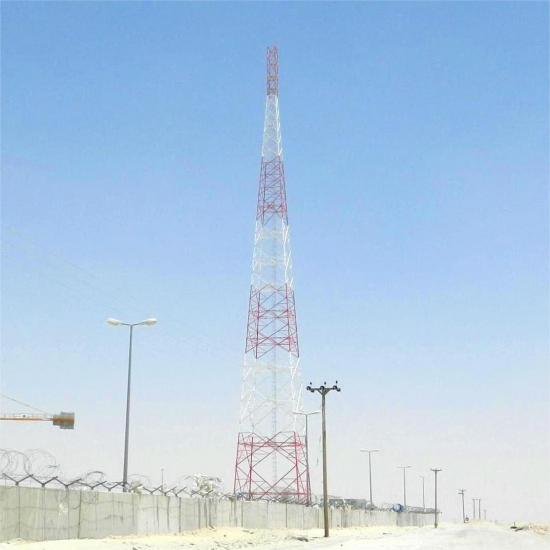

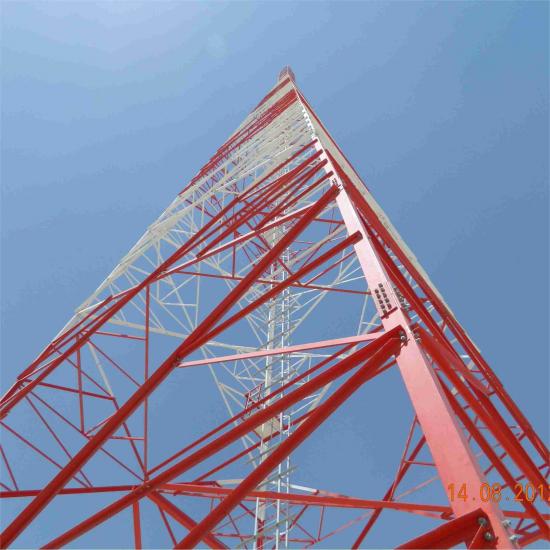

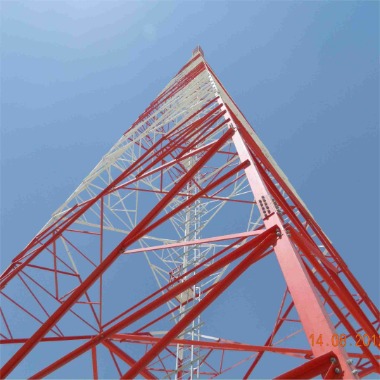

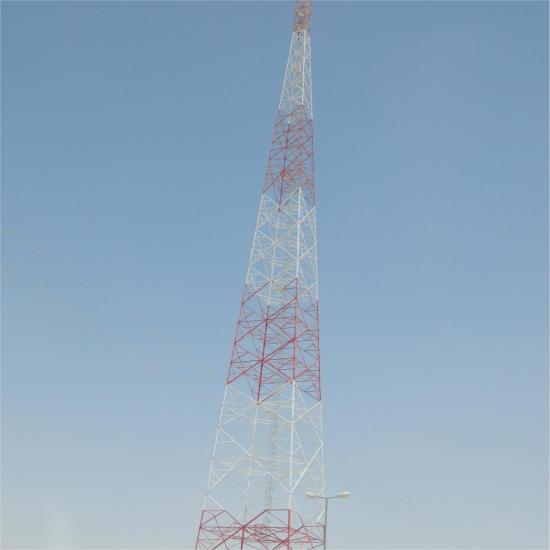

Product Name：50M 3-Legged Angular Steel Tower
Type: Telecommunication Tower
Height: 50 Meters
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 6,000MT Per Month
Angle steel towers are large in size and occupy a large area. They are generally placed in the suburbs or villages where land rent is not high. The angle steel tower can carry more antenna equipment, has strong load capacity, low material unit price, and the manufacturing and welding volume is small and easy to process.
Product Details:
4-legged towers provide better stability and resistance to lateral loads from wind and uneven terrain. Weight distribution is more even on 4 legs. Getting access between legs for maintenance can be easier with 3 legs. 4 legs can be more cramped.

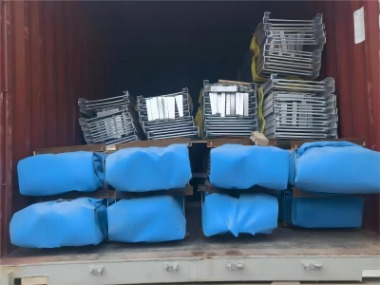

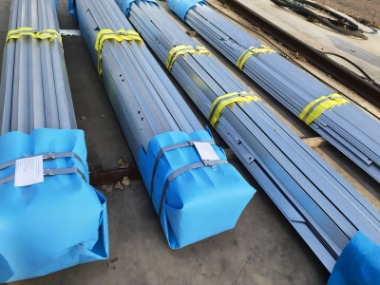

Packaging Reference:
Our Pros:
Professional Design & Engineering Team:
With professional engineering team, we can design and fabricate transmisssion towers as your utmost requirements, as well as all-time standing by technicians to solve your technical problems and provide consulting services.
High Repitation Held by Our Clients:
Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Mature Production Line and Sophisticated Employees
Altai Tower Introduction
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
Angle steel tower refers to a self-standing tall steel structure made of angle steel. It is the earliest tower type used by operators. Angle steel towers are divided into two types: floor towers and roof towers. They generally consist of a foundation, tower feet, tower legs, tower body, platform, and lightning rod. , antenna bracket and ladder.
Angular steel towers offer economical, low-maintenance lattice tower structures that safely elevate critical communications equipment high above ground level.
Angle steel towers are large in size and occupy a large area. They are generally placed in suburbs or villages where land rent is not high. The amount of manufacturing and welding is small and easy to process.
Angle steel towers are suitable for counties, towns, fields, hills, mountainous areas and other areas with low landscape requirements and easy land acquisition. They are also suitable for areas with complex environments and difficult transportation.
Guyed Wire Tower needs to reserve a large space for cables and covers a large area. It is suitable for rural and urban roofs where land is not expensive.
Angle steel tower refers to a self-standing tall steel structure made of angle steel. It is the earliest tower type used by operators. Angle steel towers are divided into two types: floor towers and roof towers. They generally consist of a foundation, tower feet, tower legs, tower body, platform, and lightning rod. , antenna bracket and ladder.
The tower body of the three-tube tower is made of steel pipes. The three main steel tubes are planted on the ground as the skeleton, and are supplemented by some horizontal and inclined steel materials for fixation. Compared with the traditional angle steel tower, the cross-section of the three-tube tower is triangular. , the figure is also slimmer. Therefore, it has a simple structure, a small number of parts, convenient construction, and a small footprint, so it saves money.
The single-column bracket only needs one single-row column support, and each unit has only a single-row bracket foundation. It mainly consists of columns, diagonal supports, guide rails (beams), component pressure blocks, guide rail connectors, bolt washers, nut sliders and other components.
