Item NO.:
AT-A70Order(MOQ):
10 MTPayment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
3,000 MT/ MonthDescription of Goods:
Product Name：70M 4-Legged Angular Steel Telecom Tower
Type: Telecommunication Tower
Height: 70 Meters
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM 572, GR50. GR65.SS400
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization Standard: ASTM A123
Nuts or Bolts: Grade 8.8
Welding Standard: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and Nuts: ISO146 OR ASTM/A153
Life Time: More than 20 years
Supply Ability: 3,000MT Per Month

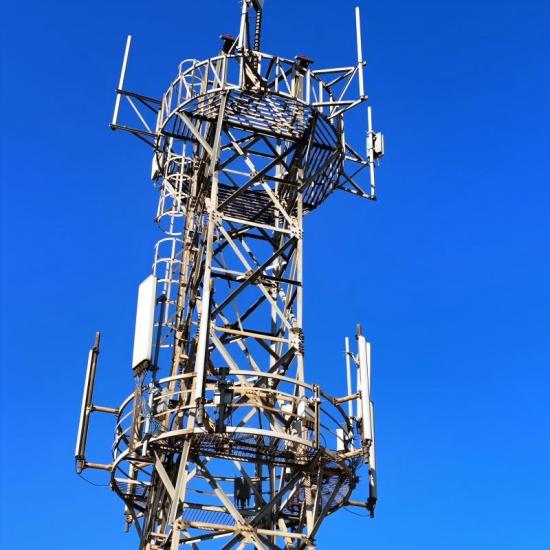

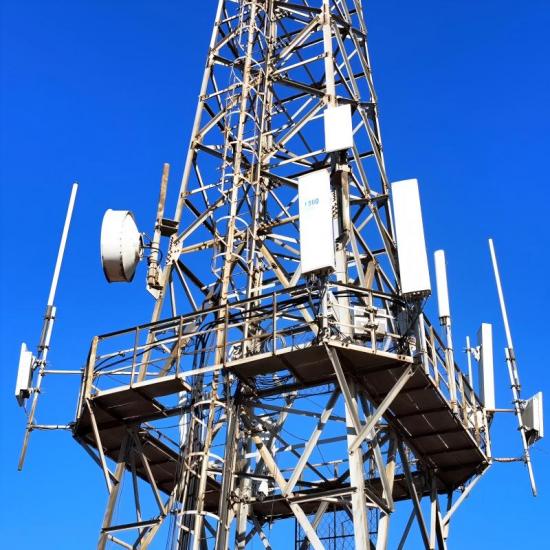

Structural Components
1. Main Body: Vertical framework assembled from angle steel sections (e.g., 50x50x5 mm to 150x150x12 mm), connected via bolts or welding. Triangular or square lattice configurations enhance stability.
2. Cross Arms: Horizontal elements supporting antennas and transmission lines, adjustable in length and angle.
3. Platforms: Maintenance platforms with safety rails for technicians.
4. Lightning Protection: Rods and grounding systems to dissipate strikes, ensuring equipment safety.
5. Climbing Systems: Ladders, safety loops, and rest platforms for safe ascent.
Design Considerations
1. Load Capacity: Engineered to withstand wind (up to 200 km/h), ice loads, seismic activity, and equipment weight.
2. Height: Ranges 30–300 meters, determined by coverage needs and obstructions.
3. Modularity: Prefabricated sections for easy transport and assembly.
4. Compliance: Meets international standards (ANSI/TIA-222, IEC 60652, Eurocodes).

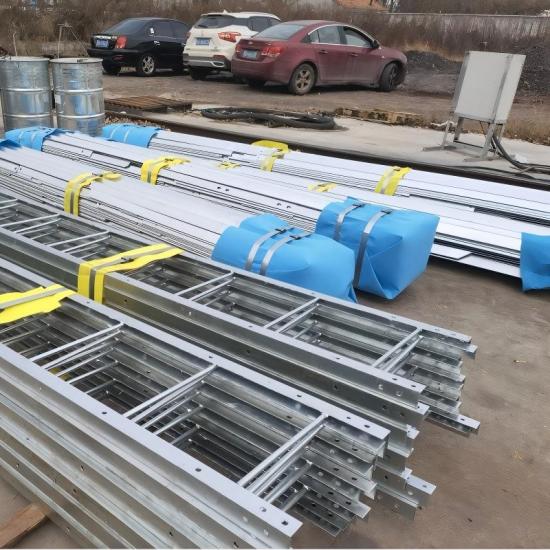

Packaging Reference:
Our Full Experience in the Industry
Mature Production Line
Mature angle steel production lines and workers are able to produce the highest quality products for our customers. Perfect craftsmanship and technology can maximize the service life of the product, allowing us to solve problems that may arise in the future for our customers.

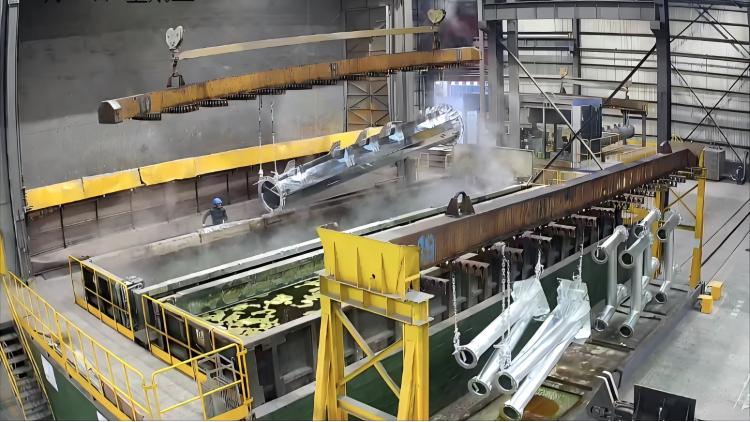

Galvanization:
Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities.
Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Professional Design and Engineering Team
Experienced engineers and professional services on call at any time can customize the communication tower type according to your needs and provide you with technical support anytime and anywhere.
Qingdao Altai Tower Co., Ltd
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.

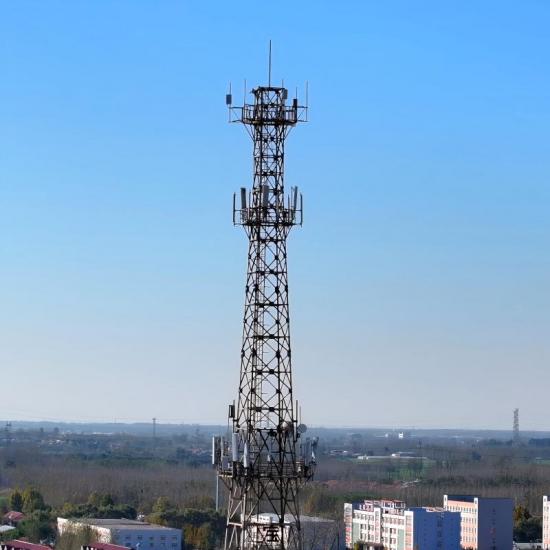

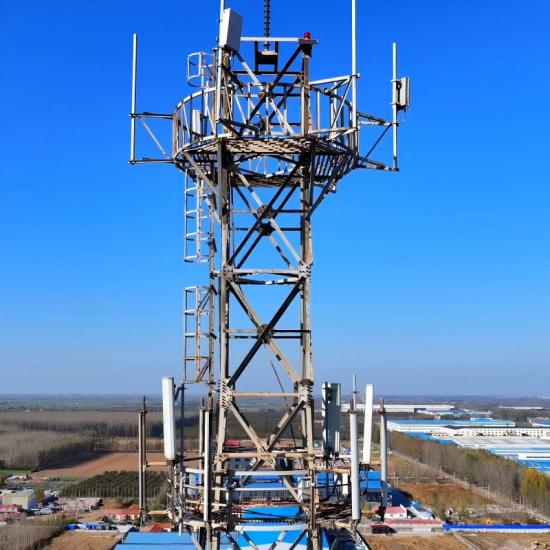

Angle steel tower refers to a self-standing tall steel structure made of angle steel. It is the earliest tower type used by operators. Angle steel towers are divided into two types: floor towers and roof towers. They generally consist of a foundation, tower feet, tower legs, tower body, platform, and lightning rod. , antenna bracket and ladder.
Angular steel towers offer economical, low-maintenance lattice tower structures that safely elevate critical communications equipment high above ground level.
Angle steel towers are large in size and occupy a large area. They are generally placed in suburbs or villages where land rent is not high. The amount of manufacturing and welding is small and easy to process.
Angle steel towers are suitable for counties, towns, fields, hills, mountainous areas and other areas with low landscape requirements and easy land acquisition. They are also suitable for areas with complex environments and difficult transportation.
The angle steel tower is assembled from angle steel materials and connected by bolts. It is very convenient to process, transport and install. It has high overall stiffness, strong load-bearing capacity and mature technology application. Angle steel towers are limited by the specifications of angle steel materials. The material utilization rate is low and the amount of steel is large. However, the unit price of angle steel materials is low. Overall, the cost performance has certain advantages.
The guyed wire tower has a novel appearance, reasonable stress, light weight, simple construction and short construction period. It is a communication tower with good performance, economical and practical, especially suitable for cities (urban areas) and scenic spots.
A guyed tower is a slender structure made up of truss members, which rests on the ocean floor and is held in place by a symmetric array of catenary guylines.
Angle steel towers are large in size and occupy a large area. They are generally placed in suburbs or villages where land rent is not high. The amount of manufacturing and welding is small and easy to process.
