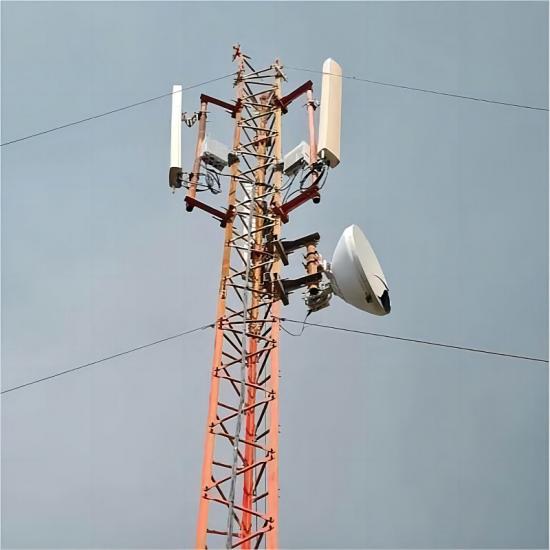

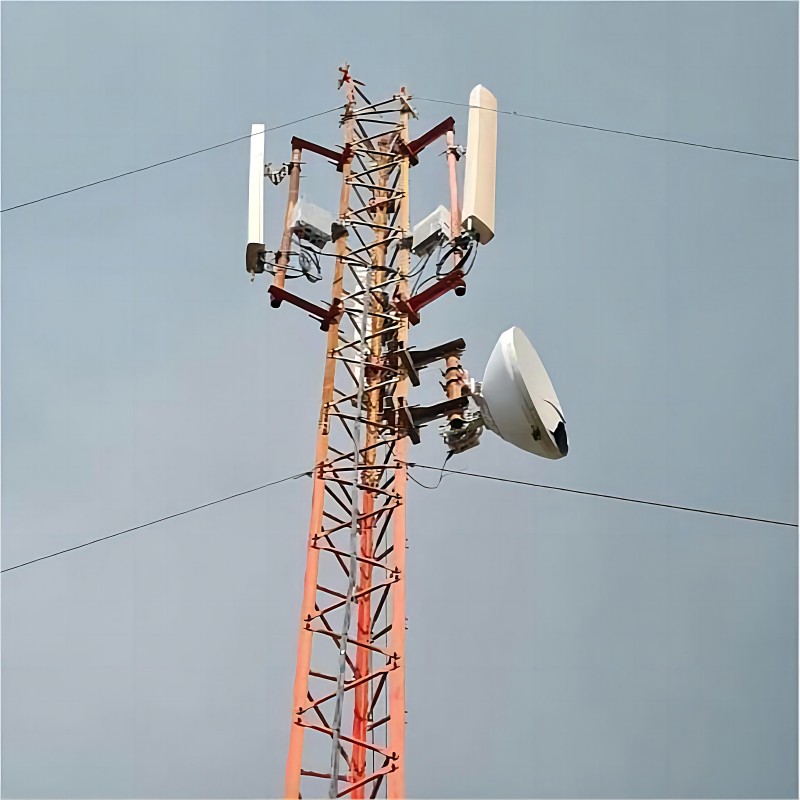

45M Guyed Wire Tower for Telecommunication

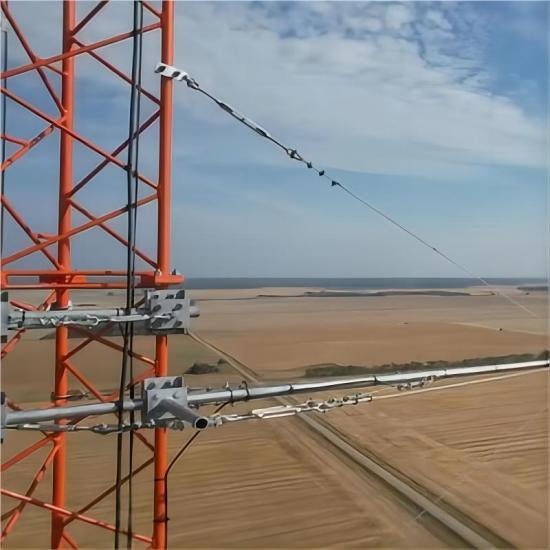

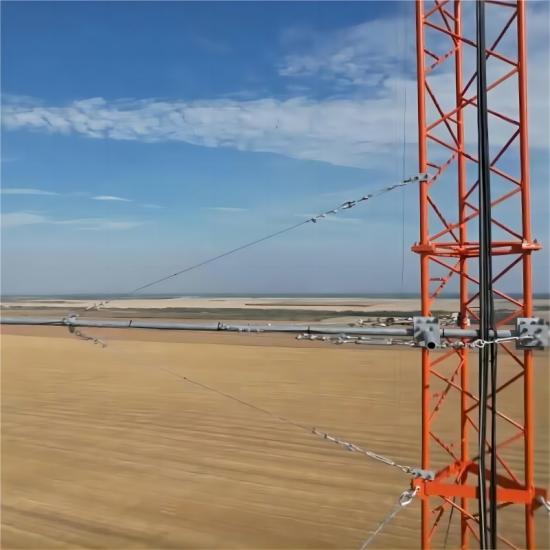

The guyed wire tower is composed of a tower head, a column and a cable. The tower head and columns are generally made of space trusses composed of angle irons, which have good overall stability and can withstand large axial pressure.
  • Item NO.:

    AT-GW03
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    2,500 MT/ Month

The windward area of the guyed tower is small, the structure is simple and the weight is light. Easy to process. At the same time, the material cost is low and the cost performance is high. Compared with single-tube towers, guyed towers can be mounted with multiple antenna devices and have a slightly stronger load capacity.

guyed wire tower





Description:

Product Name: 45M Guyed Wire Tower

Type: Telecommunication Tower

Design SoftwareMS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC.

Height: 9M-210M

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 2,500 Tons Per Month

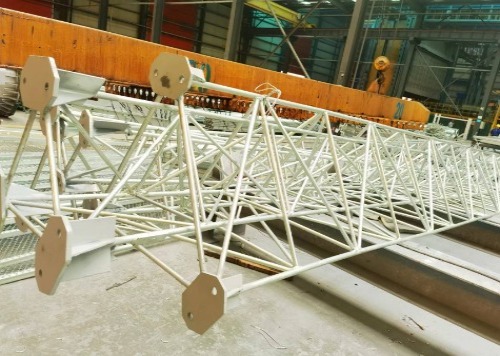

Production:

With advanced production technology, skilled technical workers and strict production link control, we ensure 100% customer satisfaction in each process.

production line polishing

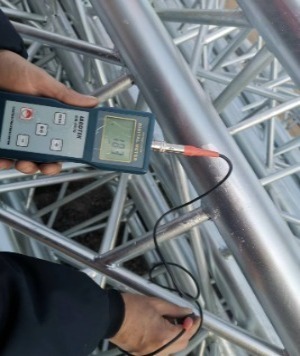

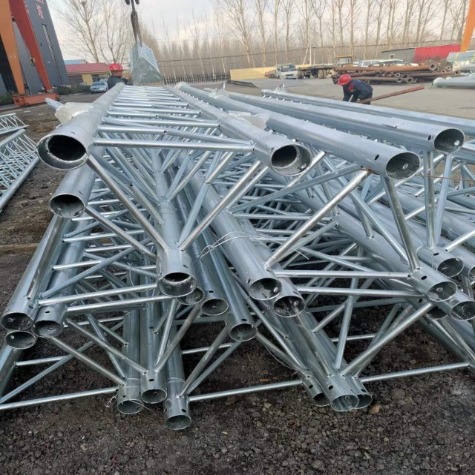

Galvanization:

With advanced and mature galvanizing technology, the thickness far exceeds international standards.

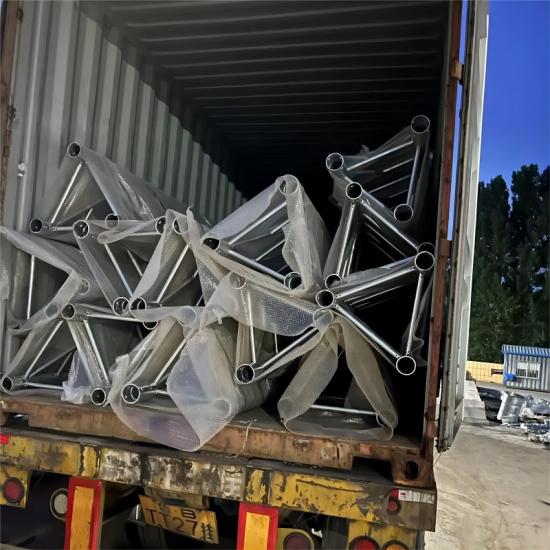

Packaging Details:

The product will be wrapped with foam to avoid losses due to scratches during transportation.








Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
