Item NO.:
AT-GWT-5Order(MOQ):
10 MTGoods Stock:
2Payment:
T/T, L/C, D/PProduct Origin:
Shandong, ChinaColor:
As per CustomizationShipping Port:
Qingdao, ChinaLead Time：
2,500 MT / MonthStructure and Design
1. Central Mast: A slender, vertical steel or lattice structure (typically 200–2,000 feet tall).
2. Guy Wires: Multiple high-tension steel cables anchored to the ground, providing lateral stability.
3. Anchors: Concrete or ground-embedded systems that secure the guy wires, spaced radially around the tower.
4. Antenna Mounts: Host 5G antennas, Massive MIMO arrays, and microwave dishes for backhaul connectivity.
Description:
Product Name: Guyed Wire / Guyed Mast Tower
Type: Telecommunication Tower
Design Software: MS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC。
Height: 9M-210M
Wind Speed: 0--330KM/H
Design standard: TIA/EIA-222-G/F/H
Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420
ASTM A36, ASTM A575, GR50.
EN/0025: S235JR S235JO S235JZ
EN/0025: S355JR S355JO S355JZ
Certificate: ISO9001:2008 SGS COC
Galvanized: Hot-dipped Galvanized
Galvanization: ASTM A123/150 1461
Nuts or Bolts: Grade 8.8
Welding: AWS D1.1
Method: CO2 Shielded Arc Welding. Submerged Arc Welding (SAW).
Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153
Life Time: More than 25 years
Supply Ability: 2,500 Tons Per Month
Production:
With advanced production technology, skilled technical workers and strict production link control, we ensure 100% customer satisfaction in each process.
Galvanization:
Advanced galvanizing technology and a galvanized layer that far exceeds the international standard thickness can provide good anti-corrosion and anti-rust effects for the cable tower in subsequent use.

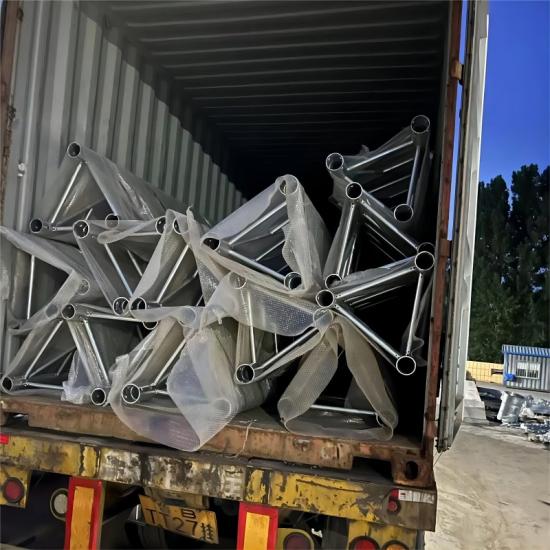

Packaging Details:
The product will be packaged with foam to avoid losses due to scratches during transportation.
Why Choose Us?
1.We have a strict quality management system and are certified to ensure that our customers will not have any problems when receiving and using the goods.
2.Imported advanced production equipment can ensure sufficient productivity and good operational stability, ensuring on-time delivery of quality and quantity for our customers.
3.Our long-term accumulation in this industry has given us a good reputation and credibility, and our high-quality products can be seen in major regions of the world.
Full Experience in the Industry
Precision Equipment
Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.
Mature Production Line and Sophisticated Employees
Professional Technical Engineering Team
Qingdao Altai Tower Co., Ltd
Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.

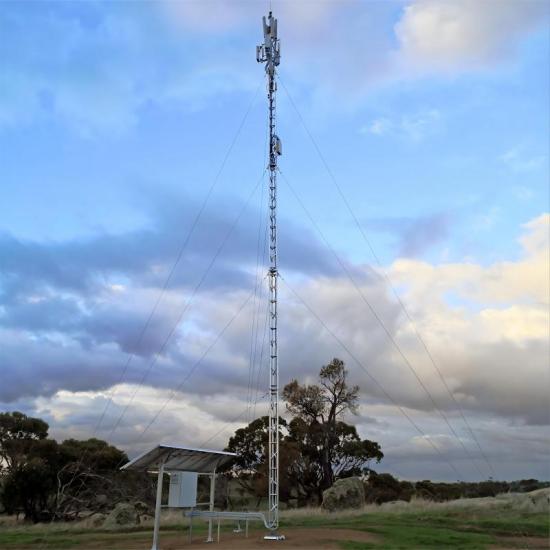

The guyed wire tower has a novel appearance, reasonable stress, light weight, simple construction and short construction period. It is a communication tower with good performance, economical and practical, especially suitable for cities (urban areas) and scenic spots.
Guyed Wire Tower needs to reserve a large space for cables and covers a large area. It is suitable for rural and urban roofs where land is not expensive.

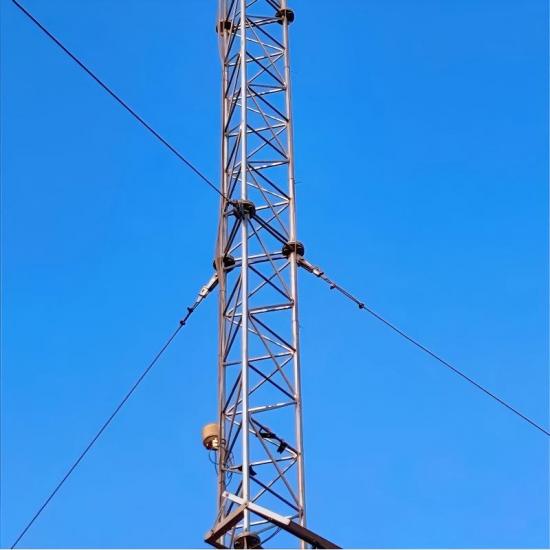

The guyed wire tower is composed of a tower head, a column and a cable. The tower head and columns are generally made of space trusses composed of angle irons, which have good overall stability and can withstand large axial pressure.
A guyed tower is a slender structure made up of truss members, which rests on the ocean floor and is held in place by a symmetric array of catenary guylines.
Guyed wire telecom towers are optimal for high-altitude signal transmission where land availability permits. They balance cost and height but demand careful maintenance and spatial planning to mitigate risks.
Radar lattice towers play a crucial role in supporting radar antennas and equipment for various applications, providing a stable and elevated platform for radar systems to function effectively. Their lattice design offers a robust solution for elevating radar equipment to the required heights while maintaining structural integrity and performance over time.
A 40-meter Cellular on Wheels (COW) unit is a versatile and mobile solution for extending cellular coverage and capacity in temporary or emergency situations, offering reliable communication services in areas where additional network support is required.
The nut wedge clamp tis composed of a wedge mother, a wedge and a long U-shaped screw with a certain adjustment range. The cable clamp is used both to fix the cable and to adjust the length of the cable.
