Communication Tower Manufacturer

80M Telecom Radio Guyed Wire Cell Tower

Home Guyed Wire Tower

80M Telecom Radio Guyed Wire Cell Tower

80M wire tower
80M wire tower
80M wire tower
80M wire tower

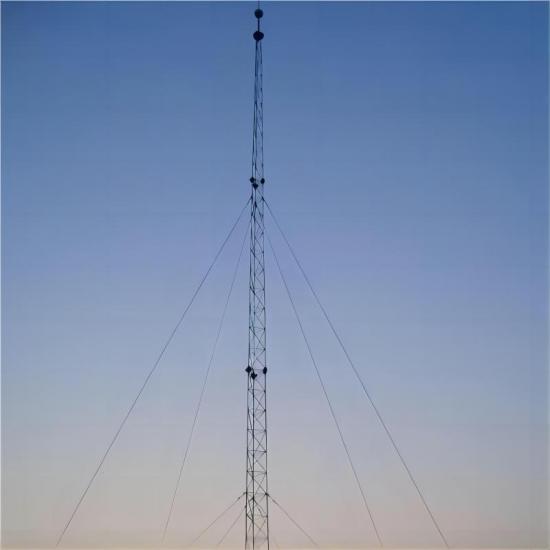

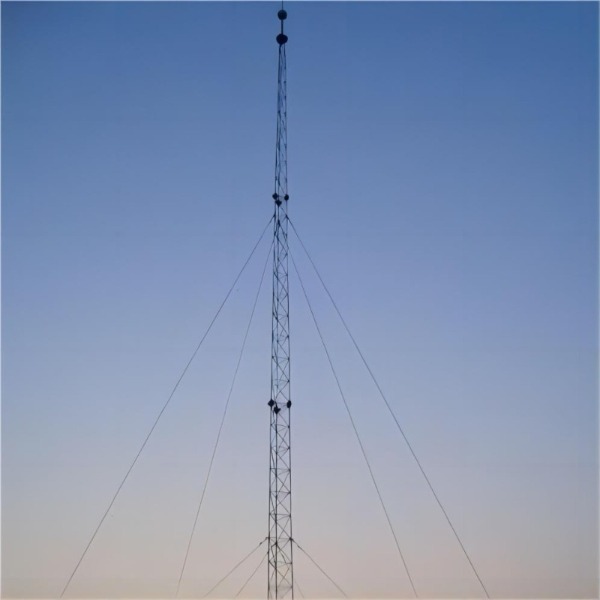

80M Telecom Radio Guyed Wire Cell Tower

A guyed tower is a slender structure made up of truss members, which rests on the ocean floor and is held in place by a symmetric array of catenary guylines.
  • Item NO.:

    AT-GW04
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

The cable tower installs symmetrical cables on the tower head or body to firmly support the tower. The tower itself only bears vertical pressure. This kind of pole and tower saves nearly 40% of steel, but the cable distribution takes up a lot of space, which is unfavorable for agricultural and forestry farming, and the scope of use is limited.

guyed wire cell antenna tower





Description:

Product Name: Guyed Wire Tower

Type: Telecommunication Tower

Design SoftwareMS TOWER. ASM TOWER,PLS TOWER,SAP2000 ETC

Height: 9M-210M

Wind Speed: 0--330KM/H

Design standard: TIA/EIA-222-G/F/H

Material: GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

ASTM A36,  ASTM A575,  GR50.

EN/0025: S235JR   S235JO    S235JZ

EN/0025: S355JR   S355JO    S355JZ

Certificate: ISO9001:2008 SGS COC

Galvanized: Hot-dipped Galvanized

Galvanization: ASTM A123/150 1461

Nuts or Bolts: Grade 8.8

Welding: AWS D1.1

Method: CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Galvanization Standard of Bolts and nuts: ISO146 OR ASTM/A153

Life Time: More than 25 years

Supply Ability: 2,500 Tons Per Month





Product Overview:

guyed wire antenna and microwave

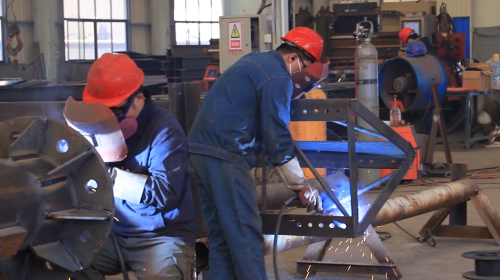

Production:



With advanced production technology, skilled technical workers and strict production link control, we ensure 100% customer satisfaction in each process.

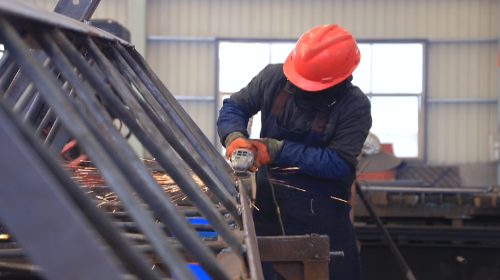

production line polishing

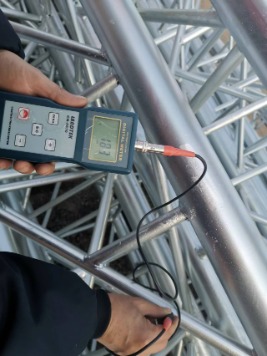

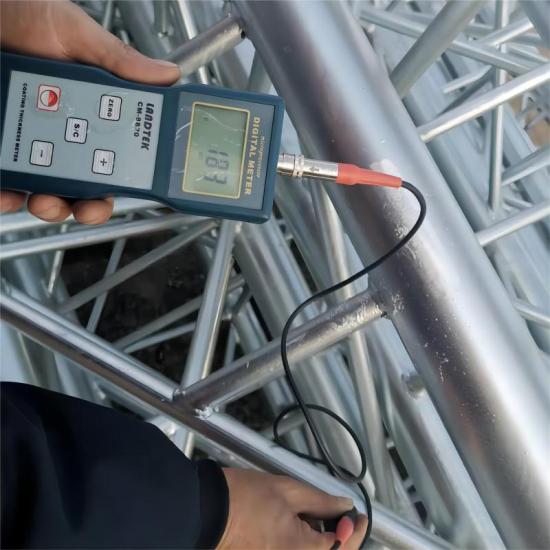

Galvanization:

Advanced galvanizing technology and a galvanized layer that far exceeds the international standard thickness can provide good anti-corrosion and anti-rust effects for the cable tower in subsequent use.

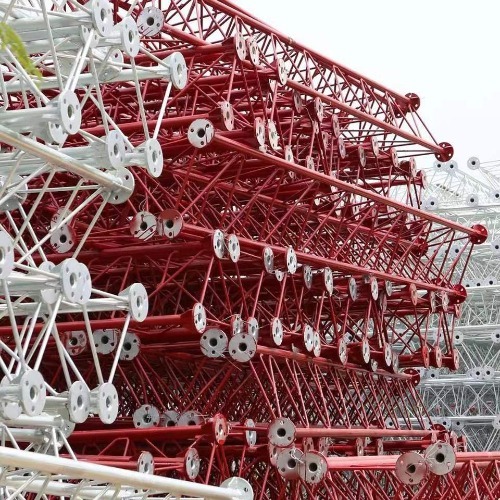

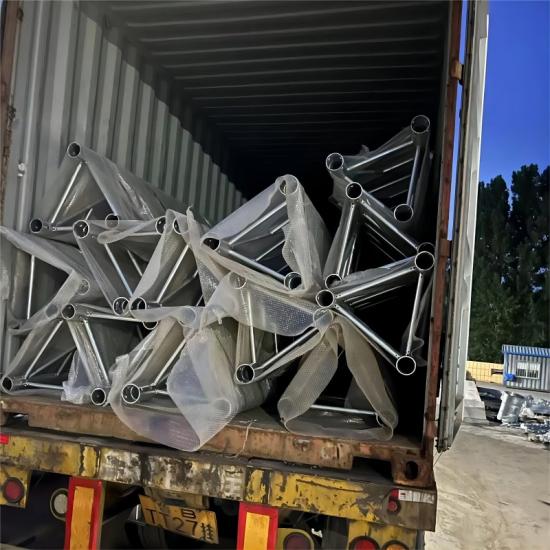

Packaging Details:

The product will be packaged with foam to avoid losses due to scratches during transportation.

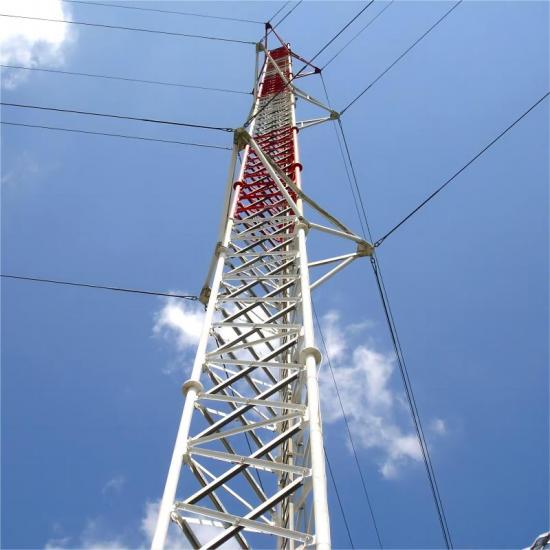

wire tower for telecom and cell




Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
