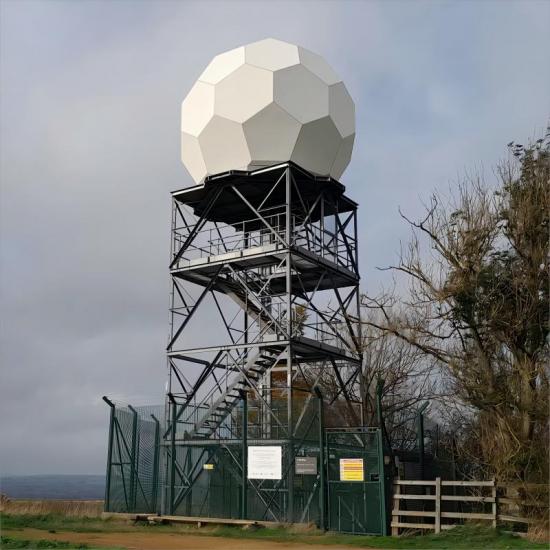

25m radar tower

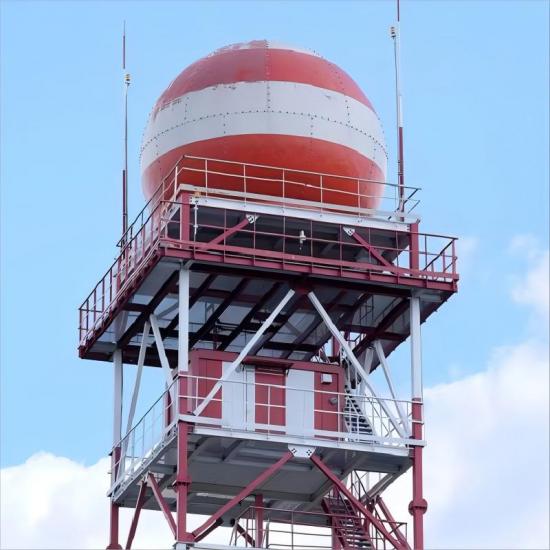

25m radar tower

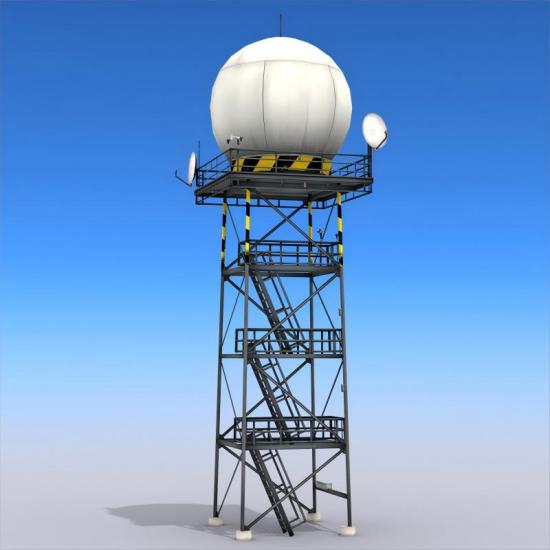

25m radar tower
25m radar tower

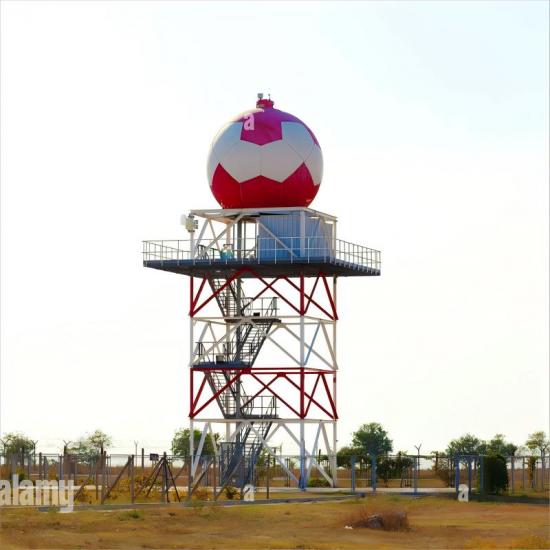

25m radar tower

25 Meters Weather Radar Lattice Tower

A radar lattice tower is a specific type of tower structure designed to support radar antennas and related equipment. These towers are characterized by their lattice framework, which consists of interconnected steel components arranged in a crisscross pattern.
  • Item NO.:

    AT-WR03
  • Order(MOQ):

    5MT
  • Goods Stock:

    1
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

Radar lattice towers play a crucial role in supporting radar antennas and equipment for various applications, providing a stable and elevated platform for radar systems to function effectively. Their lattice design offers a robust solution for elevating radar equipment to the required heights while maintaining structural integrity and performance over time.

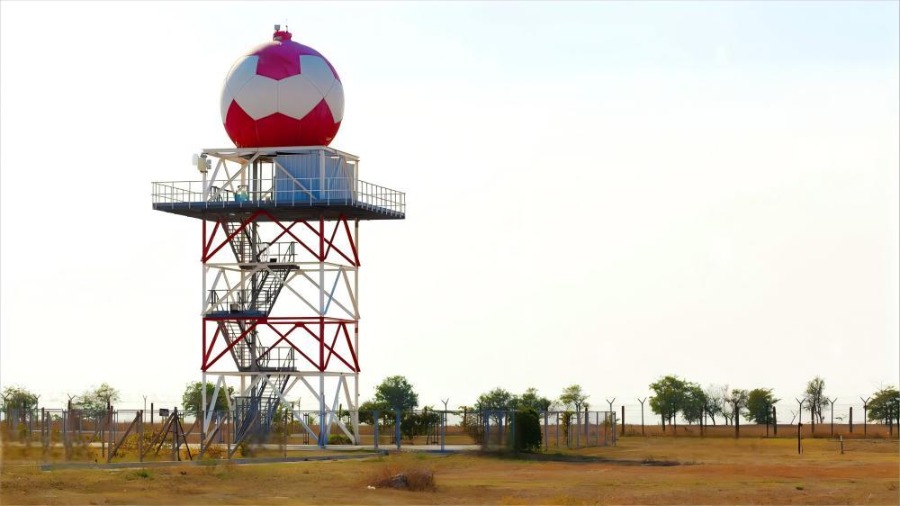

radar lattice steel tower

Product Description:

Self supporting Lattice Tower is the most widely used in world, which has a wide range of applications, it can adapt to different antenna loads, wind speeds and topography,etc.

Tower Height

25 Meters (or as per customization)

Design Standard

ANSI/TIA-222-F/G/H, BS8100,Euro Part1&3

Design wind speed

100kph-350kph(3s gust wind speed)

Exposure Category

B/C/D

Antenna Load

Based on Radar with randome size and weight

Galvanization Standard

EN ISO 1461, ASTM A153& ASTM A123

Material:

GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420



ASTM A36,  ASTM 572,  GR50. GR65.SS400

Surface Treatment:

Hot-dip Galvanized

Galvanization Standard:

ASTM A123

Welding Standard:

AWS D1.1

Welding Method:

CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

Life Time:

More than 25 years

Supply Ability:

3,000MT Per Month

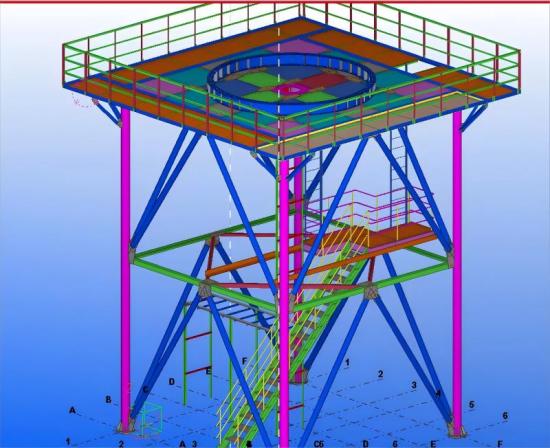

Designing Details:

weather radar tower

weather tower  weather lattice tower



Packaging Details:



antenna   microwave



Project Display:

weather radar lattice steel tower

Why Choose Us?



Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves.
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate.
6. We are not only manufacturers and suppliers, but also your partners and technical support.



About us--Qingdao Altai Tower Co., Ltd



Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.
