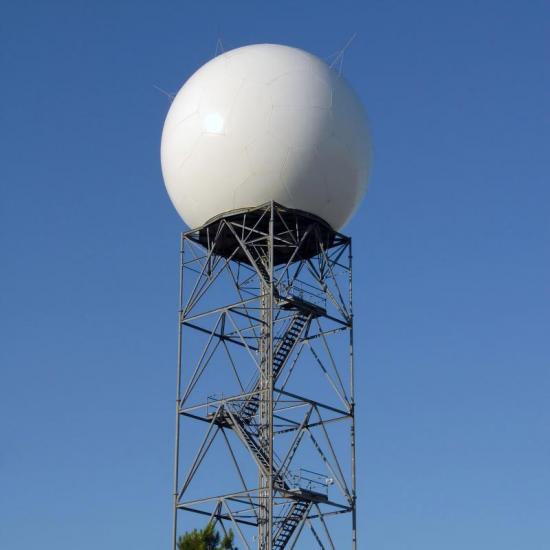

40m radar

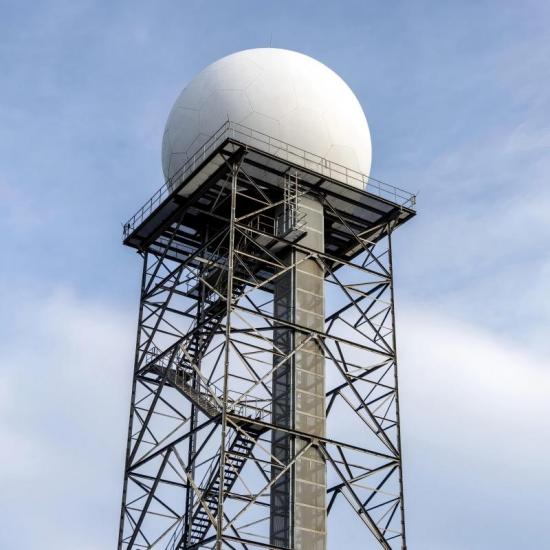

40m radar

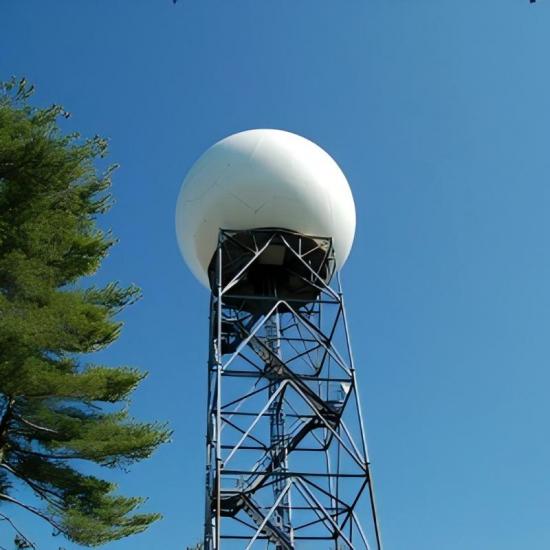

40m radar

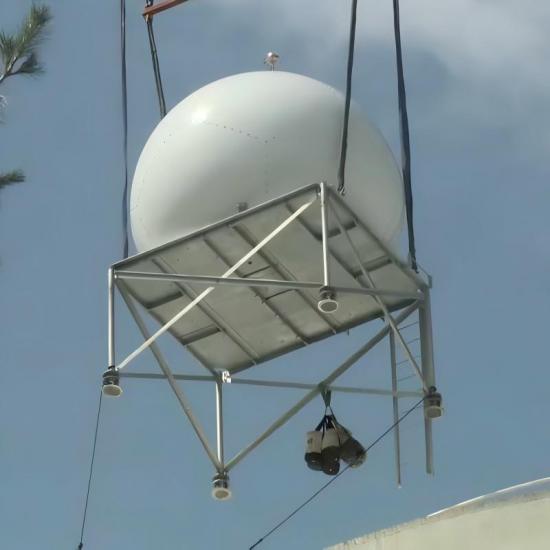

40m radar
40m radar

30m 35m 40m HDG Galvanized Radar Weather Monitor Lattice Steel Tower

A radar lattice steel tower structure is a specialized type of tower designed to support radar systems used for air traffic control, weather monitoring, defense applications, and other radar-related purposes. These towers are constructed using lattice steel components, providing a sturdy framework that can withstand the weight of radar equipment and antennas while offering minimal wind resistance.
  • Item NO.:

    AT-RT05
  • Order(MOQ):

    10 MT
  • Payment:

    T/T, L/C, D/P
  • Product Origin:

    Shandong, China
  • Color:

    As per Customization
  • Shipping Port:

    Qingdao, China
  • Lead Time:

    3,000 MT/ Month

Structural Design

  • Lattice Configuration: Triangular or square lattice frameworks are standard, providing stability and wind resistance.

  • Height: Towers range from 20 meters to over 80 meters, depending on application.

  • Load Capacity: Designed to withstand wind speeds up to 160 km/h and seismic activity.


  • Components
  •
  • Radar Platforms: Elevated platforms to mount radar antennas, often reinforced to handle equipment weight and movement (e.g., rotating dishes).

  • Access Systems: Ladders, staircases, or elevators for maintenance personnel.

  • Stabilization Features: Guy wires or cross-bracing for additional stability in high-wind areas.

  • Foundations: Deep concrete bases or pilings to anchor the tower, especially in soft soil or seismic zones.

  • radar lattice steel tower

    Product Description:

    Self supporting Lattice Tower is the most widely used in world, which has a wide range of applications, it can adapt to different antenna loads, wind speeds and topography,etc.



    Tower Height:

    10-40 Meters (or as per customization)

    Design Standard:

    ANSI/TIA-222-F/G/H, BS8100,Euro Part1&3

    Design wind speed:

    100kph-350kph(3s gust wind speed)

    Exposure Category:

    B/C/D

    Antenna Load:

    Based on Radar with randome size and weight

    Galvanization Standard:

    EN ISO 1461, ASTM A153& ASTM A123

    Material:

    GB/T700: Q235B . GB/T1591: Q355B, Q355C, Q355D.Q420

    ASTM A36,  ASTM 572,  GR50. GR65.SS400

    Surface Treatment:

    Hot-dip Galvanization

    Galvanization Standard:

    ASTM A123

    Welding Standard:

    AWS D1.1

    Welding Method:

    CO2 Shielded Arc Welding.   Submerged Arc Welding (SAW).

    Life Time:

    More than 25 years

    Supply Ability:

    3,000MT Per Month

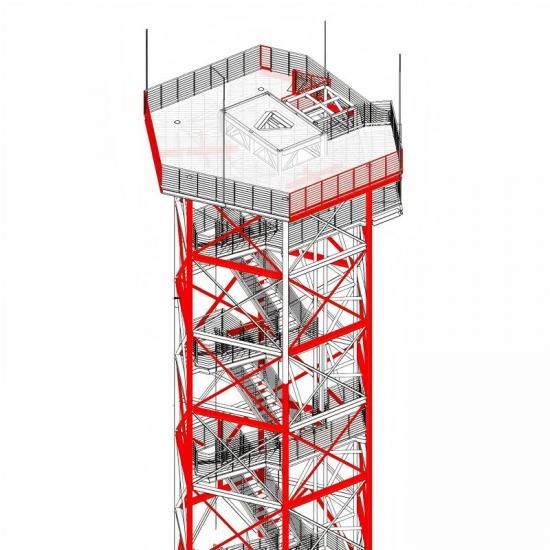

  • Designing Details:
  •
  • weather radar tower
  • 1
  • weather tower  weather lattice tower
  •

  • Packaging Details:
  •
  •
  • radar lattice steel tower  weather monitor radar tower

  • Why Choose Us?

    1.We have a strict quality management system and are certified to ensure that our customers will not have any problems when receiving and using the goods.

    2.Imported advanced production equipment can ensure sufficient productivity and good operational stability, ensuring on-time delivery of quality and quantity for our customers.

    3.Our long-term accumulation in this industry has given us a good reputation and credibility, and our high-quality products can be seen in major regions of the world.



    Full Experience in the Industry

    radar lattice steel tower weather radar steel tower

    Precision Equipment

    Large-scale laser cutting equipment can make the parameters of accessories on the tower smaller. Coupled with professional worker operation and technical guidance, excellence will be penetrated into each of our products.



    weather radar lattice steel tower


    Mature Production Line and Sophisticated Employees

    hdg radar steel lattice tower



    weather radar lattice steel tower





    galvanized radar hdg steel tower


    Hot-dip Galvanization:

    Hot-dip galvanization thickness over 100 microns, having strong anti-rust and anti-corrosion capabilities and strictly according to ASTM A123 standard.

    hdg radar steel tower


    Professional Technical Engineering Team



    radar tower design  radar tower design

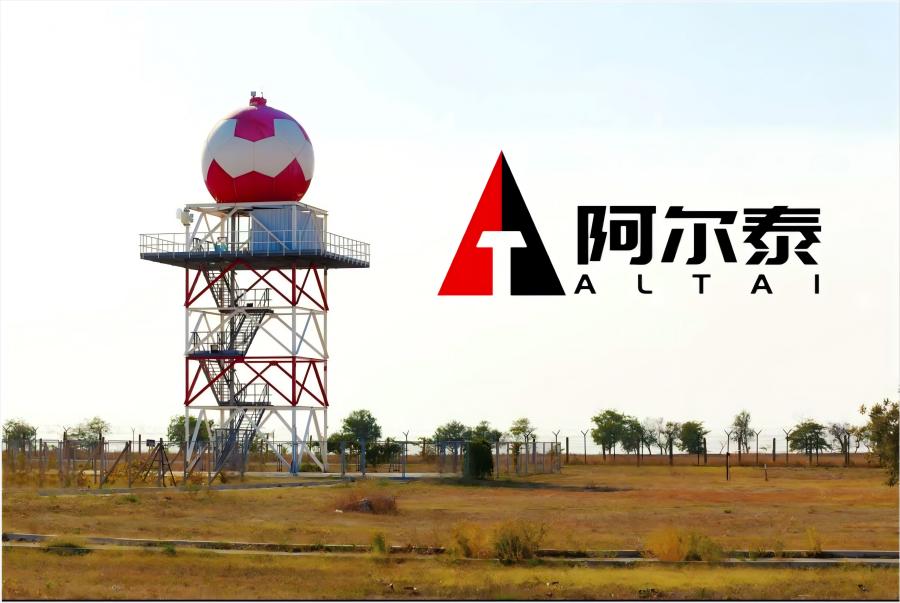

  • About us--Qingdao Altai Tower Co., Ltd

  • 1
  •

    Qingdao Altai tower Co., Ltd. is a professional manufacturer of telecommunication tower, power tower and tower accessories, and has passed ISO, CE and other international authoritative certification, we have 23 international patents. We are committed to providing customers with the best telecommunication towers and the most professional telecommunication equipment optimization solutions. Many of our products have been exported to more than 100 different countries and regions, such as the United States, Middle East countries, Europe and so on, and have achieved very good market reputation in the local market.

    radar lattice steel tower
