Wholesale Overhead Line Strain Tension Clamp ( Hydraulic Type)

Overhead Line Strain Tension Clamp ( Hydraulic Type)

NY series hydraulic compression tension clamp is used to fix and connect conductor onto the tension insulator string or the fittings on pole and tower through sustaining tensile force generated by the conductor.

Item NO.:

AT- HSC

Order(MOQ):

500 Sets

Payment:

T/T, L/C, D/P

Product Origin:

Shandong, China

Color:

Silver / as per customization

Shipping Port:

Qingdao, China

Lead Time：

6,000 Sets/ Month

Product categories

Product Details

Product Description:

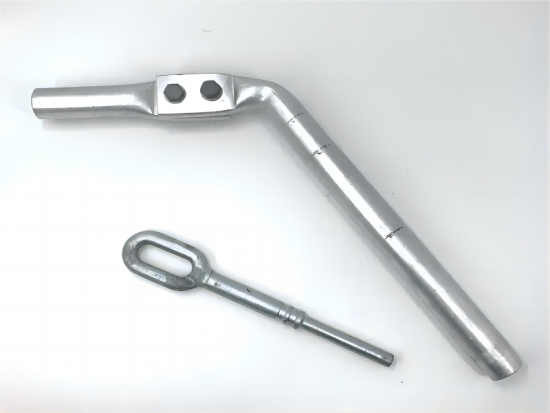

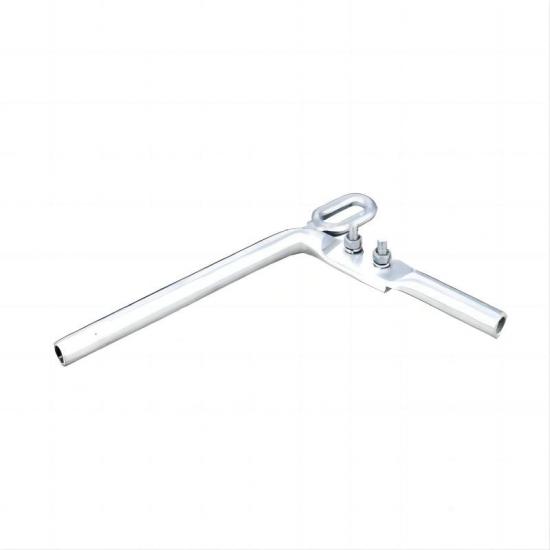

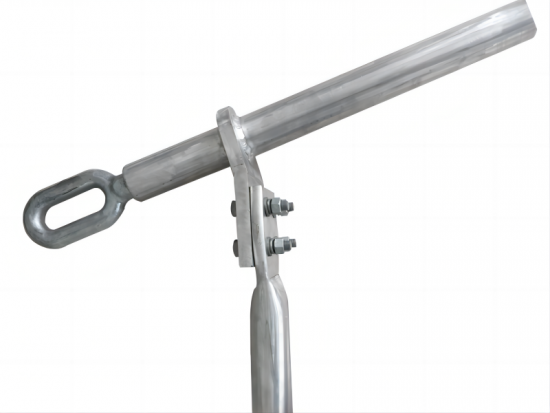

Strain Clamp（Hydraulic Type）

It is made of high-strength aluminum and steel materials, with clean surface and durable usage period, meanwhile it is easy for installation, free of hysteresis loss, low carbon and energy saving.

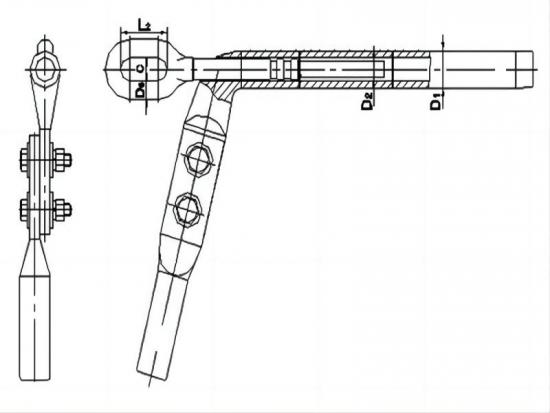

Catalog No.	Suitable Conductor	Dimensions（㎜）								Grip Strength（kN）
Catalog No.	Suitable Conductor	L	L1	L2	L3	D	D1	D2	R	Grip Strength（kN）
NY-50/8	LGJ-50/8	355	250	55	190	26	12	16	10	16.1
NY-50/30	LGJ-50/30	405	300	55	190	30	14	16	10	40.5
NY-70/10	LGJ-70/10	385	280	55	200	26	12	16	10	22.3
NY-70/40	LGJ-70/40	455	350	55	200	32	18	16	10	55.4
NY-95/15	LGJ-95/15	385	280	55	205	26	14	16	10	33.3
NY-95/20	LGJ-95/20	385	280	55	205	26	14	16	10	35.4
NY-95/55	LGJ-95/55	485	380	55	205	34	20	18	11	74.2
NY-120/7	LGJ-120/7	385	280	55	205	30	12	16	10	26.2
NY-120/20	LGJ-120/20	405	300	55	205	30	14	16	10	39.0
NY-120/25	LGJ-120/25	425	320	55	205	30	14	16	10	45.5
NY-120/70	LGJ-120/70	535	420	65	215	36	22	18	11	93.5
NY-150/8	LGJ-150/8	400	295	55	210	30	12	16	10	31.3
NY-150/20	LGJ-150/120	425	320	55	210	30	14	16	10	44.3
NY-150/25	LGJ-150/25	435	330	55	210	30	14	16	10	51.4
NY-150/35	LGJ-150/35	455	350	55	210	30	16	16	10	61.8
NY-185/25	LGJ-185/25	455	350	55	230	32	14	16	10	56.5
NY-185/30	LGJ-185/30	455	350	55	230	32	16	16	10	61.1

Strain Clamps（Steel anchor the whole）

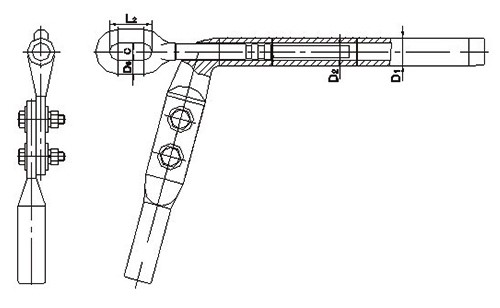

Catalog No.	Suitable Conductor	Dimensions（㎜）								Grip Strength（kN）
Catalog No.	Suitable Conductor	L	L1	L2	L3	D	D1	D2	R	Grip Strength（kN）
NY-185/45	LGJ-185/45	475	370	55	230	32	18	18	11	76.2
NY-240/30	LGJ-240/30	495	390	55	230	36	16	18	11	71.9
NY-240/40	LGJ-240/40	495	390	55	250	36	16	18	11	79.2
NY-240/55	LGJ-240/55	540	420	65	250	36	20	20	12	97.0
NY-300/15	LGJ-300/15	485	380	55	250	40	14	16	10	64.7
NY-300/20	LGJ-300/20	495	390	55	265	40	14	18	11	71.9
NY-300/25	LGJ-300/25	505	400	55	265	40	14	18	11	79.3
NY-300/40	LGJ-300/40	525	420	55	265	40	16	18	11	87.6
NY-300/50	LGJ-300/50	550	430	65	265	40	18	20	12	98.3
NY-300/70	LGJ-300/70	585	460	70	265	42	22	22	13	121.6
NY-400/20	LGJ-400/20	545	440	55	270	45	14	18	11	84.4
NY-400/25	LGJ-400/25	545	440	55	270	45	14	18	11	91.2
NY-400/35	LGJ-400/35	560	440	65	270	45	16	20	12	98.7
NY-400/50	LGJ-400/50	585	460	70	270	45	20	22	13	117.3
NY-400/65	LGJ-400/65	608	480	70	270	48	22	22	13	128.5
NY-400/95	LGJ-400/95	663	520	80	270	48	26	24	15	162.8

Packaging and Shipment:

Generally, sea-worthy packaging will be adoped, using plastic bags and metal mesh/ wood crate. Quantity each crate/ mesh contains will be showned on the marks marked on the package.
